We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Ultrasonic Sensors from Pune, Maharashtra, India.

Inductive Sensors REQUEST A QUOTE
The ultrasonic sensors from Carlo Gavazzi provide superior sensing solutions for a variety of industrial applications. The UA sensors are excellent for contactless position and distance measurement and are able to detect any sound reflecting targets regardless of colour, transparency or surface. Due to their resistance to temperature variations and immunity against dust, steam and fumes, these sensors are especially well suited to harsh environments. The sensors come in a two switching output version and a combined version with one switching and one analogue output. Thanks to improved technology, an extended sensing distance and a reduced housing length, these sensors provide a state-of-the-art sensor family with high accuracy, versatility and resilience.

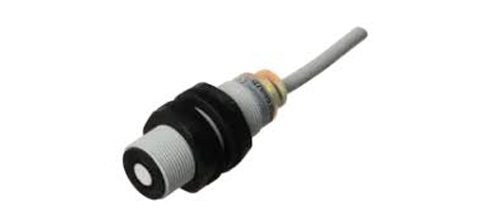

M18 - Short Body PBT Housing • Supply voltage: DC 4-wire • Sensing distance: 300 or 800 mm teach-by wire • Output: NPN/PNP - NO/NC • Output: analogue 4-20 mA/0-10 V • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: switching, positive or negative slope • Approvals: CE - cULus
M18 - Short Body Stainless Steel • Supply voltage: DC 4-wire • Sensing distance: 300 or 800 mm teach-by wire • Output: NPN/PNP - NO/NC • Output: analogue 4-20 mA/0-10 V • Connectivity: cable or M12 connector • Housing: AISI316L stainless steel, IP67 • Features: switching, positive or negative slope • Approvals: CE - cULus

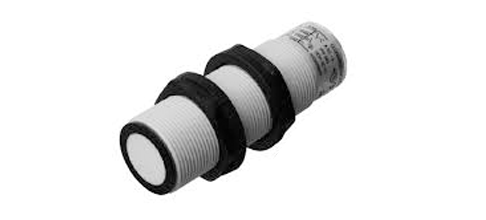

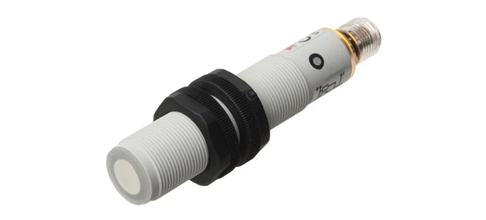

M18 - Switching Output • Supply voltage: DC 4-wire • Sensing distance: < 2.2 m teach-in • Output: NPN/PNP - NO+NC • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: switching • Approvals: CE - cULus

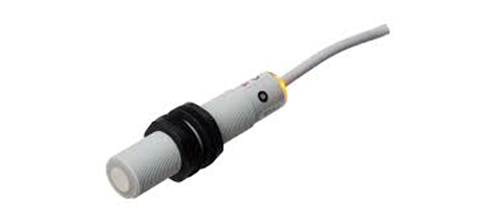

M18 - Analogue Output • Supply voltage: DC 4-wire • Sensing distance: < 2.2 m teach-in • Output: analogue 4-20 mA/0-10 V • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: positive or negative slope • Approvals: CE - cULus
M30 - Switching Output • Supply voltage: DC 4-wire • Sensing distance: < 3.5 m teach-in • Output: NPN/PNP - NO+NC, analogue • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: switching • Approvals: CE - cULus

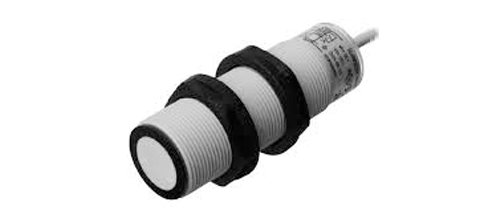

M30 - Analogue Output • Supply voltage: DC 4-wire • Sensing distance: < 2.2 m teach-in • Output: analogue 4-20 mA/0-10 V • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: positive or negative slope • Approvals: CE - cULus

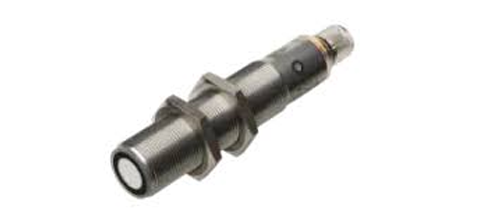

M18 - Stainless Steel • Supply voltage: DC 4-wire • Sensing distance: < 2.2 m teach-in • Output: NPN/PNP - NO+NC • Connectivity: cable or M12 connector • Housing: AISI316L stainless steel, IP67 • Features: switching • Approvals: CE - cULus
M18 - Stainless Steel • Supply voltage: DC 4-wire • Sensing distance: < 2.2 m teach-in • Output: analogue 4-20 mA/0-10 V • Connectivity: cable or M12 connector • Housing: AISI316L stainless steel, IP67 • Features: positive or negative slope • Approvals: CE - cULus
M30 - Stainless Steel • Supply voltage: DC 4-wire • Sensing distance: < 3.5 m teach-in • Output: NPN/PNP - NO+NC, analogue • Connectivity: cable or M12 connector • Housing: AISI316L stainless steel, IP67 • Features: switching • Approvals: CE - cULus
M30 - Stainless Steel • Supply voltage: DC 4-wire • Sensing distance: < 2.2 m teach-in • Output: analogue 4-20 mA/0-10 V • Connectivity: cable or M12 connector • Housing: AISI316L stainless steel, IP67 • Features: positive or negative slope • SApprovals: CE - cULus
M12 - Stainless Steel • Supply voltage: DC 4-wire • Sensing distance: < 400 mm teach-in • Output: NPN/PNP NO/NC • Connectivity: cable or M12 pig-tail • Housing: stainless steel, IP67 • Features: switching, 4-20 mA/0-10 V • Approvals: CE
M30 (Ø39 mm) • Supply voltage: DC 4-wire • Sensing distance: < 3.5 m teach-in • Output: NPN/PNP - NO+NC, analogue • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: switching, 4-20 mA/0-10 V • Approvals: CE - cULus
