We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Industrial Relays and Sockets from Pune, Maharashtra, India.

Industrial Relays and Sockets REQUEST A QUOTE
Carlo Gavazzi offers a comprehensive range of electromechanical relays for industrial automation. These are available in plug-in and PCB mounting. Many of the relays come as standard with a push-to-test button as well as a LED indicator. Carlo Gavazzi relays are frequently used in control panels, in HVAC control systems, pump and compressor control and electronic and consumer products. They are typically used to switch loads such as heaters, lights and motors. Carlo Gavazzi also offers a complete range of sockets (DIN-rail mounting) for industrial and PCB relays.

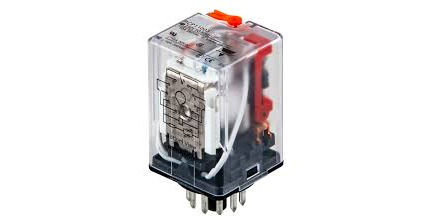

Industrial RCP • 8 or 11-pin socket mounting • 2 or 3 change-over contacts • Matching sockets available • AC coils 6 to 230 VAC/DC coils 6 to 110 VDC • Standard with LED, Push arm and Flag

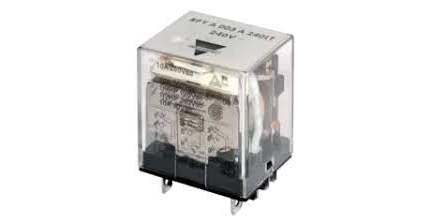

Midi industrial RPY • High switching power • 10 or 16 A switching capacity • 1 or 2 or 3 or 4 pole configuration • DC coils from 6 to 110 V/AC coils from 6 to 230 V • Flanged pins 5 mm (0.20”)

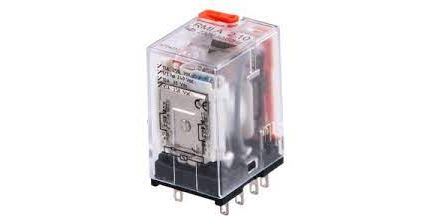

Midi industrial RMI • High switching power • Contact rating 10 A [RMI2] 5 A [RMI4] • 2 pole [RMI2] 4 pole [RMI4] configuration • AC coils 6 V to 230 V/DC coils 6 to 110 V • Standard with LED, Push arm and Flag

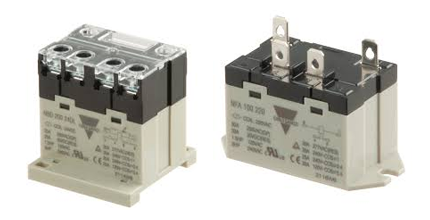

Power NF / NB • Switching capacity 30 A • DC coils 6 to 110 VDC / AC coils 12 to 240 VAC • 1 or 2 normally open contact • Faston terminals [NF] / PCB terminals [NP] / Bolt terminals [NB]

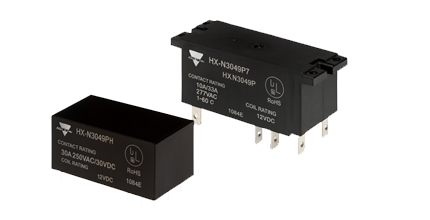

Power CF / CS • High switching power • Switching capacity 30 A • 2 normally open contacts, 2 change over contacts • DC coils from 5 to 110 V / AC coils from 24 to 277 V • Faston terminals / PCB terminals

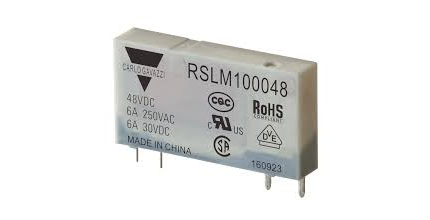

Slim RSLM • 5 mm width • Switching capacity 6 A • 1 normally open contacts or 1 change over contact • DC coils from 12 to 60 V • PCB terminals

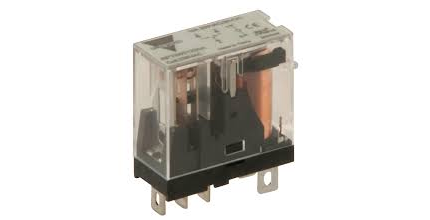

Slim industrial RPYS • Slim Relay solution • 8 or 12 A switching capacity • 1- or 2- pole configuration • DC coils 12 - 24 V, AC coils 24 - 115 - 230 V • UL 508 cURus
Slim Sockets ZPYS • Sockets for RPYS relays • Rated voltage 300 VAC • Rated current 16 A • Screw and Push-in terminals • Pre-mounted solutions with Relay + Socket + Clamp

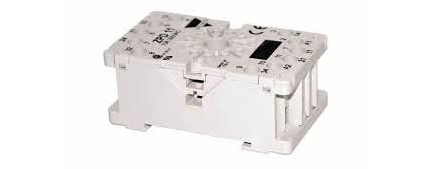

Industrial Sockets - ZPD • Sockets for RCP relays • Rated voltage 300 VAC • Rated current 10 A • Terminal type screw cage • Contact material nickel plated - CuZn33

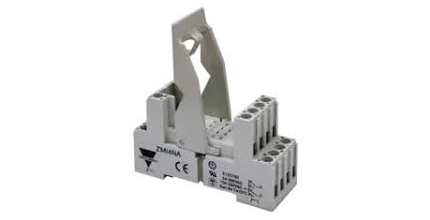

Industrial Sockets - ZMI • Sockets for RMI relays • Rated voltage 300 VAC • Rated current 10 A • Terminal type screw cage • Contact material Cu Ni

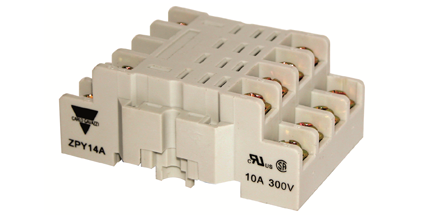

Industrial Sockets - ZPY • Sockets for RPY relays • Rated voltage 300 VAC • Rated current 16 A • Terminal type screw cage • Contact material nickel plated - CuZn33

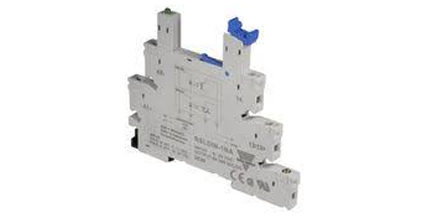

Industrial Sockets - ZRLS • Sockets for RSLM relays • Rated voltage up to 250 VAC • Rated current 6 A • Screw terminals or spring terminals • Options: various AC/DC voltage inputs
