Carlo Gavazzi presents a complete range of power supplies and battery chargers for both the automation industry and building automation. These are available in 3 different types: cabinet DIN-rail mounting, low profile DIN-rail mounting for electrical distribution panels and enclosed type. Power supplies are also available with DC, 1-phase, 2-phase and 3-phase inputs. Output voltages range from 5 to 48 VDC, with output powers from 15 W to 800 W. Battery chargers are 120 W, and availabe in 2 voltages: 12 V and 24 V.

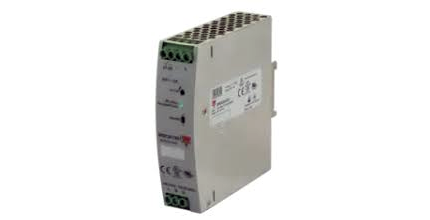

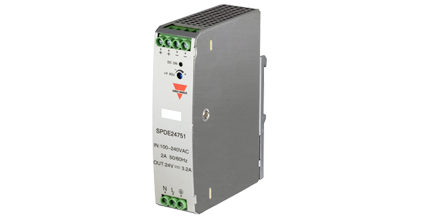

SPDE DIN-Rail 1-phase Power Supplies • From 75 to 240 W output power • 1-Ph 90 Vto 264 VACor 120 Vto 370 VDC input voltage • Adjustable output • Screw terminals • DC OK indication • CE - UKCA - cULus - cURus

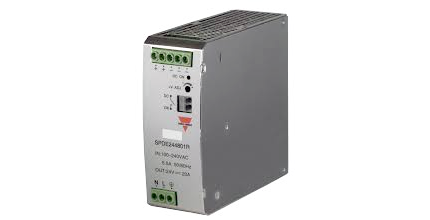

SPDE R DIN-rail 1-phase Power Supplies • From 120 to 480 W output power • 1-Ph 90 Vto 264 VACor120 Vto 370 VDC input voltage • Adjustable output • Screw terminals • DC OK indication • Available with PFC and DC OK output relay • CE - UKCA - cULus

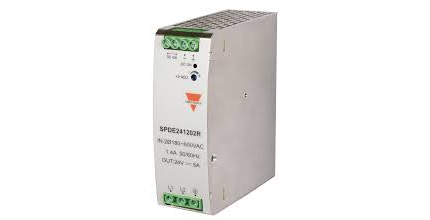

SPDE DIN-rail 2-phase Power Supplies • From 120 to 240 W output power • 2-Ph 180 VAC to 600 VAC, 2-Ph 254 VDC to 848 VDC • DC OK indication • PFC 240 W • CE - UKCA - cULus

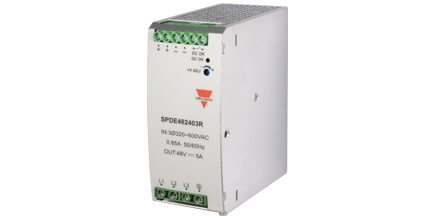

SPDE DIN-rail 3-phase Power Supplies • From 240 to 480 W output power • 3-Ph 320 VAC to 600 VAC / 3-Ph 450 VDC to 850 VDC • DC OK indication • PFC 480 W • Parallel operation switch (only 3Ph 480 W) • CE - UKCA - cULus
SPDC DIN-rail 1-phase Power Supplies • 120 W and 480 W output power • 85 to 264 VAC or 127 V to 375 VDC input voltage • Available with PFC • Compact dimension • Parallel connection output • DC OK indication • CE - cULus - cURus

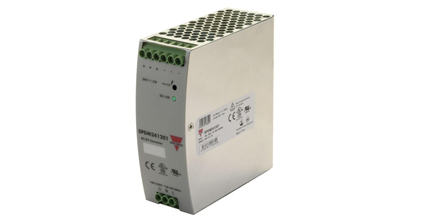

SPDM DIN-rail 1-phase Power Supplies • 120 W to 240 W output power • 90 VAC / 264 VAC or 127 V to 370 VDC input voltage • Compact dimensions • Adjustable output • DC OK indication • CE - cULus - cURus

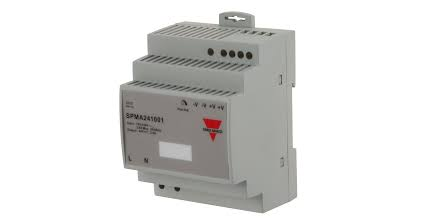

SPMA - Low Profile DIN-rail Power Supplies • From 12 to 100 W output power, 85 or 264VAC or 120 to 350VDC input voltage • Overvoltage, Overload and Short circuit protection • Compact dimension • 4 kV insulation, UL Class 2 output • CE - UKCA - cULus - cURus - UL 1310 Class 2, UL ISA 12.12.01 Class I Div2

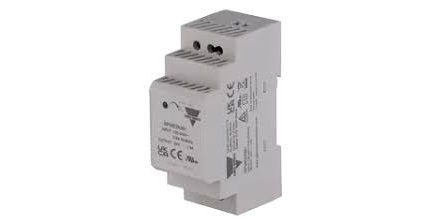

SPME - Low Profile DIN-rail Power Supplies • From 15 to 100 W output power, 85 or 264VAC or 120 to 370VDC input voltage • Overvoltage, Overload and Short circuit protection • Compact dimensions • 4 kV insulation, Over Voltage Category III • CE - UKCA - cURus

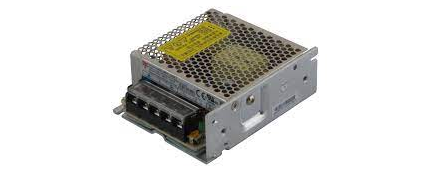

SPPC Enclosed Type 25 W ~ 75 W • 90 V to 264 VAC or 127 to 370 VDC input voltage • Wide operating temperature -25°C to 70°C • Conformal coated PCB • Cooling fan w/ speed control • Adjustable output • CE - cURus

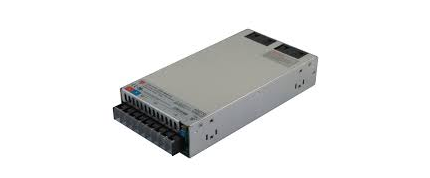

SPPC FC Enclosed Type - 150 W ~ 800 W • 90 V to 264 VAC or 127 to 370 VDC input voltage • Wide operating temperature -25°C to 70°C • Conformal coated PCB • Cooling fan w/ speed control • Adjustable output • Available with PFC • CE - cURus

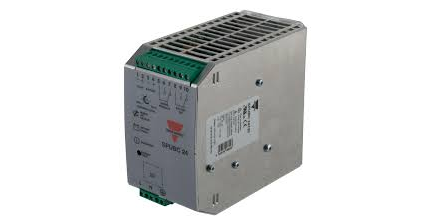

SPUBC - 120 W 24 VDC UPS & Power Supply • 12 - 24 V power supply, Battery Charger and UPS • Smart battery diagnostics and Charge management • For batteries up to 50 Ah • DIN-rail mounting • CE - UKCA - cURus

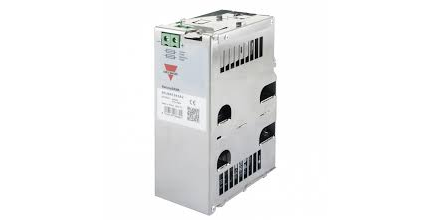

SPUBAT24 DIN-rail Battery Bank 1.2 to 12 Ah • Stainless steel battery rack for UPS and battery chargers • 24 V VRLA Battery bank • Front panel screw terminals for easy connection • DIN-rail or wall mounting • Built-in easily replaceable fuse • CE
