We are Authorized Channel Partners, Distributor, Dealer, Importer for Hengstler Counters from Pune, Maharashtra, India.

Whether you use electronic, electromechanical, mechanical or pneumatic counters, the devices available have been designed to meet your requirements. Our range extends from mini-counters through to sophisticated, programmable control counters, multifunction counters, position displays, displays, tachometers and timers

Counters And Timers

REQUEST A QUOTE
TOTALIZING Counters :
Totalizing counters tend to be used to register the number of events and display the result as a mechanical or digital numerical value
PRESET Counters :
Preset counters are counters with controller functions with which target values can be programmed and displayed
TIME Counters :
Time counters display the time cycle of installations, machines and devices
TACHOMETERS :
Tachometers record events that occur in a particular time sequence

Counters And Timers


Totalizing Counters

REQUEST A QUOTE
TICO 731 TOTALIZING COUNTERS
• Voltage Supply
• Battery
• 12-24 VDC
• 12-250 VDC/AC7.5 kHz / 30 Hz / 20 Hz
Totalizing Counters
Technical Specification

Product Family

Tico 731

Function

Totalizing Counter

Technology

Electronic

Digits

6-digit
8-digit

Display

6-digit
8-digit

Preset

None

Digit Height [mm]

7 mm (0.2 in)

Display Variant

LCD
LED


TICO 732 TOTALIZING COUNTERS
• Very Easy Operation
• LED or LCD Display
• Up to Two Presets
• Prescaler 0.001 - 999.999
Totalizing Counters
Technical Specification

Product Family

Tico 732

Function

Totalizing Counter

Technology

Electronic

Digits

6-digit

Display

6-digit
count reading / preset
leading zero suppression
decimal point

Preset

1 preset
2 presets
without presets

Digit Height [mm]

LCD 9 mm (0.4 in)
LED 7.6 mm (0.3 in)

Display Variant

LCD
LED

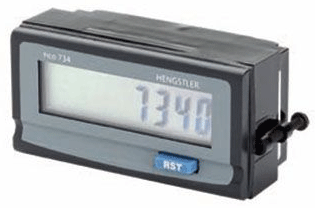

TICO 734 TOTALIZING COUNTERS
• Easy operation
• LCD display 12 mm, 8-digit, high-contrast
• Backlit display
• Voltage supply from internal lithium battery (interchangeable)
• 29 mm mounting depth
Totalizing Counters
Technical Specification

Product Family

Tico 734

Function

Totalizing Counter

Technology

Electronic

Digits

4-digit
6-digit
7-digit
8-digit

Display

4-digit
6-digit
7-digit
8-digit

Preset

2 presets

Digit Height [mm]

12 mm (0.2 in)
LED 7.6 mm (0.3 in)

Display Variant

LCD
Can be back lit by applying a voltage of 10-28 VDC
Color: green-yellow

Relay

1 SSR


TYPE 634 MINI-I
• Small outer dimensions
• Low power consumption
• Electric connections in standard pattern
• Suitable for PCB configuration
• Machine solderable and washable
• Ingress protection IP 65
Totalizing Counters
Technical Specification

Product Family

Type 634 mini-i

Function

Totalizing Counter

Technology

Electromechanical

Digits

6-digit

Display

6-digit

Preset

2 presets

Digit Height [mm]

4 , optical
