We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Level Sensors from Pune, Maharashtra, India.

Level Sensors REQUEST A QUOTE
The Carlo Gavazzi range of conductive level sensors is well suited to most level control applications. The new CL-series of intelligent conductive level controllers is used for conductive liquid level monitoring and pump controlling. CLH models with a flexible conductive level probe can accommodate up to five rods for four different levels of control. Operating levels in the tank can easily be modified by extending or cutting short the length of the electrodes. The typical applications of conductive sensors are level control and flow detection in agriculture, the chemical sector, food and beverage, water distribution and water treatment industries.

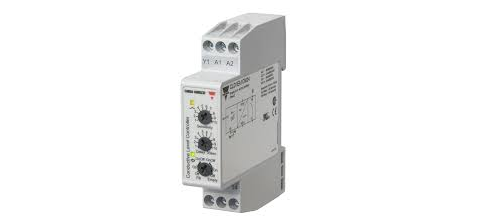

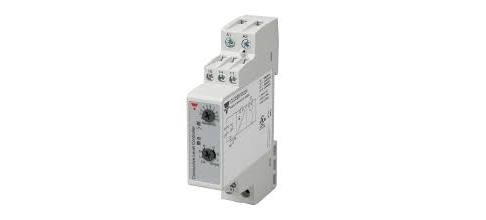

CLD 1 • 5 KΩ to 150 kΩ • Filling or emptying • 17.5 mm width slim housing • ON or OFF delay timer • 1 X 8 A / 250 VAC output

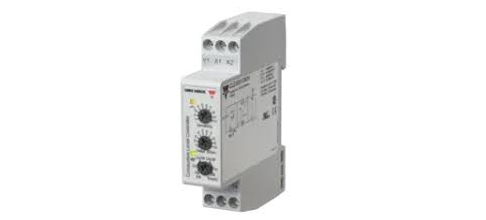

CLD 2EB • 250 Ω to 500 kΩ • Filling or emptying • 17.5 mm width slim housing • 24-240 VAC/DC supply • 1 X 8 A / 250 VAC output

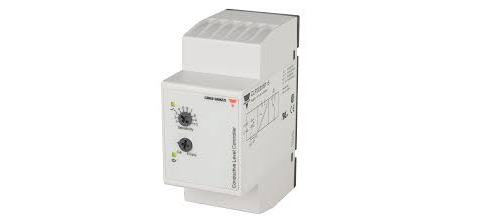

CLP 2EB • 5 KΩ to 150 kΩ • Filling or emptying • 35.5 mm width housing • Simple amplifier • 1 X 8 A / 250 VAC output
CLP2 Plug-in • 250 Ω to 500 kΩ • Filling or emptying • 35.5 mm width housing • 3 conductive ranges (L/S/H) • 2 X 8 A / 250 VAC output
CLD2 DIN-Rail • 250 Ω to 500 kΩ • Filling or emptying • 35.5 mm width housing • 3 conductive ranges (L/S/H) • 2 X 8 A / 250 VAC output

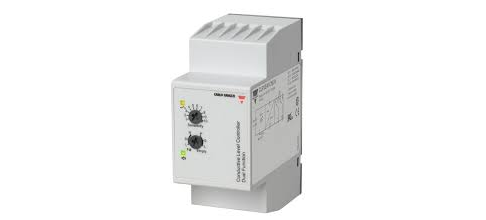

CLP2 Master-Slave • 250 Ω to 500 kΩ • Filling or emptying • Cascade up to 7 amplifiers • Many different levels • 1 X 8 A / 250 VAC output

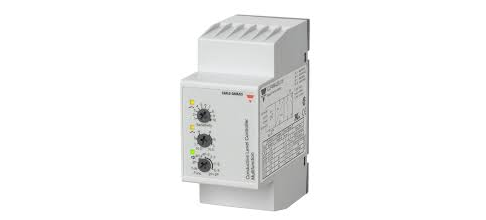

CLP4 Plug-in • 250 Ω to 500 kΩ • Many different functions • Up to 4 levels • Tank well function • 2 X 8 A / 250 VAC output

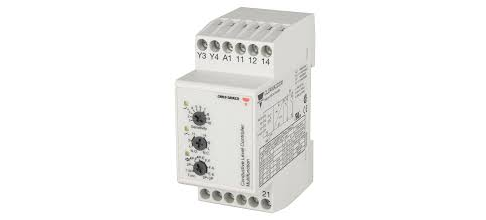

CLD4 DIN-Rail • 250 Ω to 500 kΩ • Many different functions • Up to 4 levels • Tank well function • 2 X 8 A / 250 VAC output

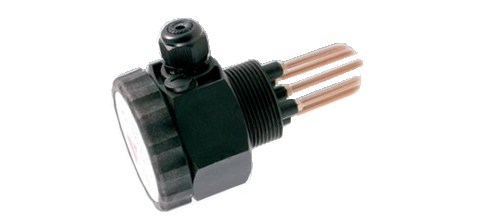

CLH • 3 or 5 electrodes • Standard 1 m length • Length can be extended • Electrode isolation • Flexibility

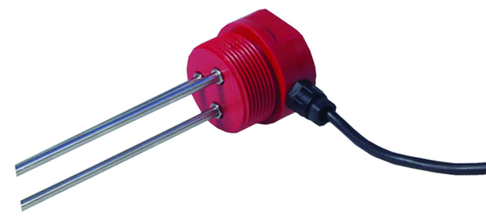

VN/VT • Up to 4 electrodes • Standard 1 m length • Stainless steel electrodes • Electrode isolation • Different housing materials

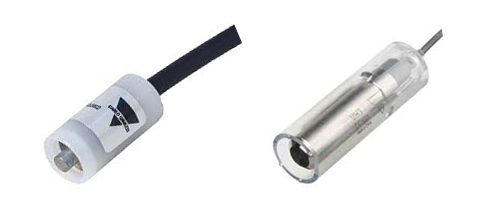

VH • 1 electrode • Level hanging probe • UV resistant PVC or Neoprene cable • Stainless steel electrodes • Suitable for swimming pools

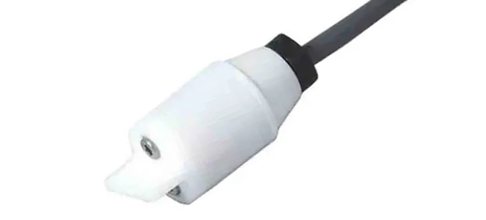

A94-10 • 2 electrodes • Level hanging probe • 5 m PVC cable • Polyester housing • Suitable for swimming pools
