We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Photoelectric Sensors from Pune, Maharashtra, India.

Photoelectric Sensors REQUEST A QUOTE
Carlo Gavazzi offers a wide range of photoelectric sensors used extensively in material handling, packaging machinery, automatic door systems, etc. A variety of sensing principles are covered: diffuse-reflective (D), background suppression (B), retro-reflective (R) with/without polarization (P), for transparent objects (G), and through-beam (T). The sensors featuring IP69K ratings and ECOLAB approvals are designed for harsh environments.
Stand alone through beam • Supply voltage: DC 3-wire • Sensing distance: < 20 m • Output: NPN/PNP - NO/NC • Connectivity: cable or pig-tail • Housing: PC, IP67 • Features: sensor mute input, T type • Approvals: CE - cULus

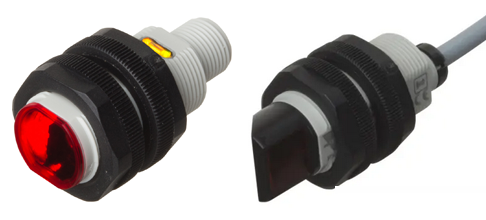

M18 PA18 • Supply voltage: DC 4-wire • Sensing distance: < 20 m • Output: NPN/PNP NO+NC • Connectivity: cable or M12 connector • Housing: PBTP, IP67, IP68, IP69K • Sensor types: D, B, R, P and T • Approvals: CE - cULus - ECOLAB

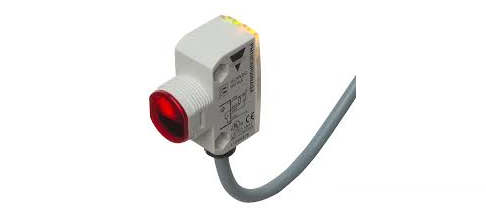

PH18 • Supply voltage: DC 4-wire • Sensing distance: < 20 m • Output: NPN/PNP NO+NC • Connectivity: cable or M12 connectors • Housing: PBTP, IP67, IP68, IP69K • Sensor types: D, B, R, P and T • Approvals: CE - cULus - ECOLAB

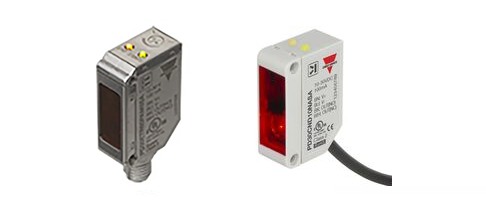

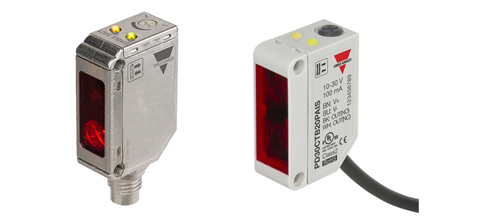

Miniaturised PD30 • Supply voltage: DC 4-wire • Sensing distance: < 15 m • Output: NPN/PNP NO+NC • Connectivity: cable or M8 connectors • Housing: ABS; IP67, Stainless Steel; IP69K • Sensor types: D, B, R, P, G and T • Approvals: CE - cULus - ECOLAB
PD30 with IO-Link • Applications: Pattern Recognition, Speed & Length detection, Divider function, Object and Gap Monitoring • Time Delays, Logic Functions • Outputs: NPN, PNP, Push-Pull, External inputs • Diagnostic function: QoT, QoR, Dust & Temp. Alarm, Operation hours, Power & Detection cycles, Max. and Min. Temp., Short-circuit, Maintenance, No of changes
LD30 ToF with IO-Link and infrared laser • IO-Link Ver. 1.1 • BGS - Time of flight sensor • Time delay, ON, OFF, One shot • Logic: AND, OR, XOR, Gated SR-FF • Housing: ABS; IP67, Stainless Steel; IP69K • Output and diagnostic function: from PD30 with IO-Link

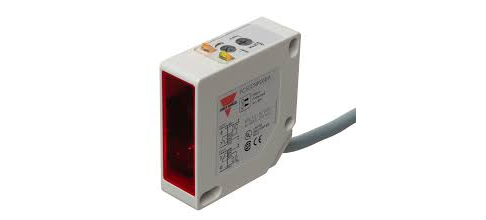

Compact PC50 • Supply voltage: DC 4-wire, AC/DC 5-wire • Sensing distance: < 20 m • Output: NPN/PNP - NO+NC, SPDT 3 A • Connectivity: cable or M12 connector • Housing: ABS/PC, IP67 • Sensor types: D, B, R, P and T • Approvals: CE - UL - CSA

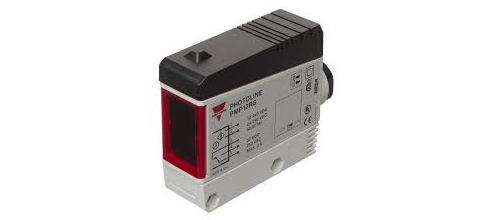

PM • Supply voltage: AC/DC 5-wire • Sensing distance: < 20 m • Output: SPDT 3 A • Connectivity: cable outlet, terminals • Housing: ABS/PC, IP67 •Sensor types: D, R, P and T • Approvals: CE - UL325 - UL508

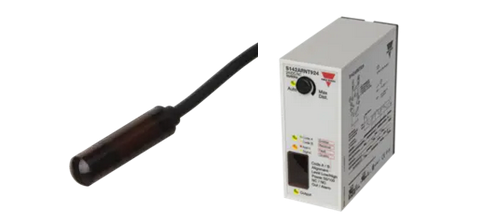

Remote amplified sensors MOF • Supply from system: S142A, B or C • Sensing distance: < 50 m • Output from system: SPDT 10 A • Connectivity: 11 pin socket • Housing: syst. PPO, sens. PC IP67 • Sensor types: T, ATEX zone 22 • Approvals: CE - UL - CSA

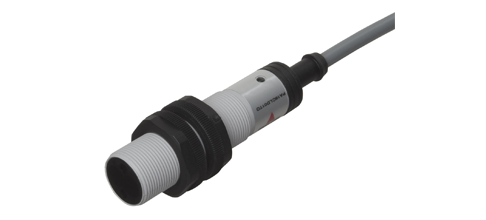

PA18CL • Supply voltage: AC 2-wire • Sensing distance: < 3 m • Output: AC 500 mA • Connectivity: cable or M12 connector • Housing: PBTP or NPB, IP67 • Features: D, R or P type • Approvals: CE - UL- CSA

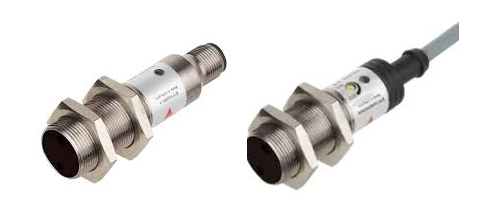

EO/ER/EP/ET18 NPB housing • Supply voltage: DC 4-wire • Sensing distance: < 20 m • Output: NPN/PNP NO+NC • Connectivity: cable or M12 connector • Housing: NPB, IP67 • Sensor types: D, R, P and T • Approvals: CE - cULus

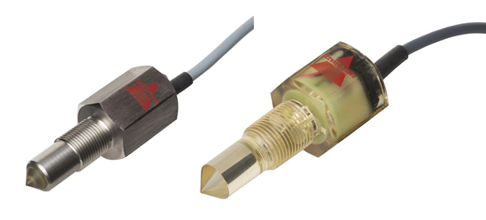

Liquid level VP-sensor • Supply voltage: DC 3-wire, AC 2-wire • Sensing distance: direct contact • Output: NPN/PNP/NO/NC, AC NO/NC • Connectivity: cable or M12 connector • Housing: PA12, PSU, Glass, NPB, stainless steel, IP67 • Approvals: CE - UL - CSA

Photoelectric Sensors REQUEST A QUOTE
Carlo Gavazzi offers a comprehensive range of sensors for Doors, Gates and Entrances, all approved to meet the latest European and North American regulations. The motion and presence sensors are based on vision technology and have been developed for straight or curved sliding pedestrian doors. They provide easy set-up, easy adjustment of the detection zone and a cross-walk elimination function.

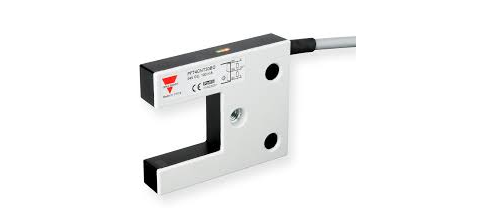

Fork sensor PF74, for lifts • Supply voltage: DC 3-wire • Slot width: < 30 mm • Output: NPN+PNP NO/NC • Connectivity: cable outlet • Housing: PC, IP65 • Features: High dust immunity, T type • Approvals: CE

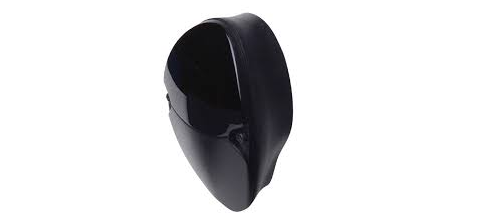

Automatic Doors PD98 • Supply voltage: AC/DC 5-wire • Sensing distance: < 30 m • Output: SPDT 1 A • Connectivity: cable outlet, terminals • Housing: PC/ABS, IP54 • Features: sensor mute input, T type • Approvals: CE - UL325

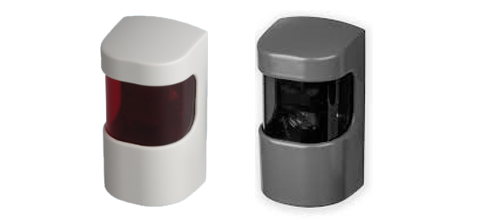

Automatic Doors PD86 • Supply voltage: AC/DC 5-wire • Sensing distance: < 20 m • Output: SPDT 3 A • Connectivity: cable outlet, terminals • Housing: PC/ZAMAK, PMMA, IP66 • Features: sensor mute input, T type • Approvals: CE - UL325 - UL508

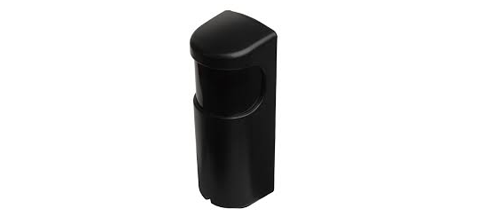

Automatic Doors PD140 • Supply voltage: AC/DC 5-wire • Sensing distance: < 60 m • Output: SPST 1 A • Connectivity: cable outlet, terminals • Housing: Aluminium/PC, IP65 • Features: sensor mute input, T type • Approvals: CE - UL325, EN 12445, EN 12453, EN12978 • EN/ISO 13849-1 ESPE2

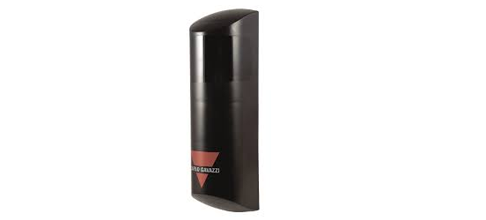

Automatic Doors PD180 • Supply voltage: AC/DC 5-wire, battery • Sensing distance: < 30 m • Output: SPST 1 A • Connectivity: cable outlet, terminals • Housing: PC, IP55 • Features: sensor mute input, T type • Approvals: CE - UL325, EN 12445, EN 12453, EN12978 • EN/ISO 13849-1 ESPE2

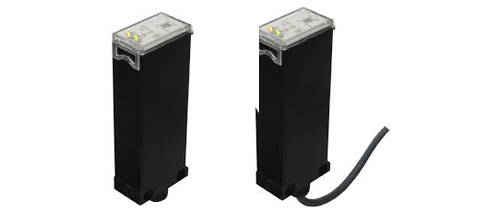

Long range BGS PD112 • Supply voltage: DC 4-wire • Sensing distance: < 2.5 m • Output: NPN/PNP NO+NC • Connectivity: cable or M12 connector • Housing: PC, IP67 • Features: B, industrial or door mode • Approvals: CE - cULus

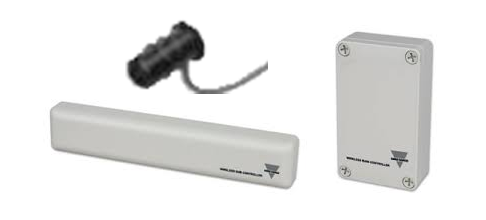

Automatic Doors Wireless Safety • Supply voltage: AC/DC, battery • Wireless distance: < 10 m • Output: 3 x SPST, NO 8,2 or NC • Connectivity: cable outlet, terminals • Housing: ABS or PC or PA6, IP66/IP67 • Main- and sub-module, 2.4 GHz duplex • Approvals: CE - cULus - FCC
Automatic Gates Wireless Safety • Supply from system: S142A, B or C • Sensing distance: < 50 m • Output from system: SPDT 10 A • Connectivity: 11 pin socket • Housing: syst. PPO, sens. PC IP67 • Sensor types: T, ATEX zone 22 • Approvals: CE - UL - CSA

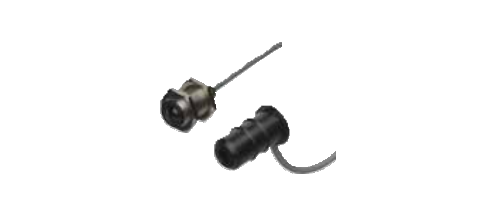

Automatic Doors MPF System • Supply voltage: AC/DC or AC • Sensing distance: < 15 m • Output: 2 x SPST 0.5 A or 2 A • Connectivity: terminals • System: PC, IP40 sensor: PC+SS, IP67 • Features: sensor mute input, T type • Approvals: CE - UL325 - UL508 - TÜV

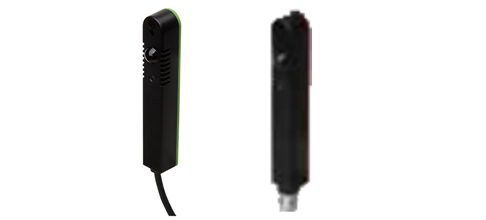

Automatic Doors PD70 • Supply voltage: DC 3-wire • Sensing distance: < 12 m • Output: NPN/PNP - NO/NC • Connectivity: cable or M8 connector • Housing: PC, IP67 • Features: sensor mute input, T type • Approvals: CE - cULus

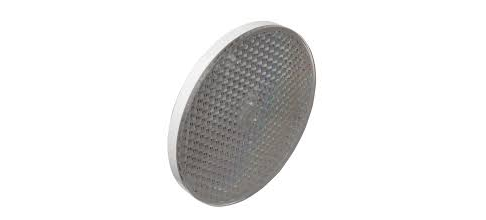

Reflectors • High quality retro-reflectors • Housing shape: square or round • Round shape: Ø25 to Ø84 mm • Square shape: 13x17 to 100x100 mm • Mounting: adhesive or screws • Material: PMMA/AB

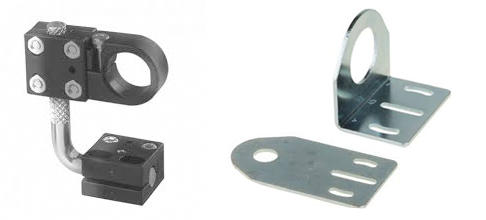

Mounting brackets AMB series • Bracket style: Straight or angled • Sensor size: Ø4, M8, M12, M18 or M30 • Bracket material: galvanized steel or stainless steel AISI316L or Nylon 66 plastic housing • Adjustability: ±32° • Head can be rotated 360°
