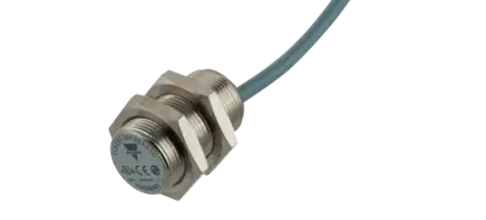

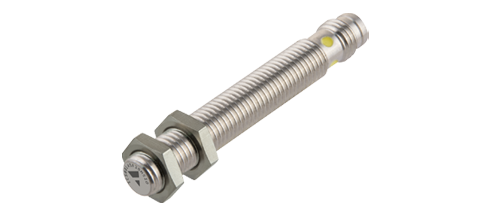

Carlo Gavazzi offers a broad range of inductive sensors, primarily used for reliable contactless detection of machine moving or rotating parts. These extremely accurate and robust sensors are used in packaging and plastics machines, conveyor systems, agriculture and mobile equipment. They are available in a wide variety of styles, including cylindrical housings (from 4 to 30 mm) with a sensing distance of up to 40 mm, flat pack, and 40 x 40 rotable head. The ICS E1 series resists to high levels of shock and vibrations, wide temperature variations, voltage peaks of up to 200 V, high pressure and high temperature wash-down thanks to IP69K rating, and have an outstanding immunity to radiated noise of up to 200 V/m. The miniature series, from Ø4 to M8, can reach a frequency of up to 6 kHz and is also available with on-board IO-Link communication, as is the new ICB series, fully embracing the Industry 4.0 requirements.
|

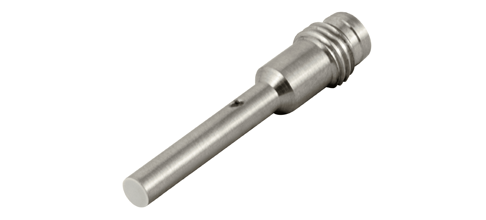

Ø4
• Supply voltage: 3-w DC
• Sensing distance: ≤ 1.3 mm (F)
• Output: NPN/PNP - NO/NC
• Connectivity: cable or M8 connector
• Housing: stainless steel, IP67
• Special features: miniature series, operating frequency up to 6 kHz
• Approvals: CE - UL - CSA
|

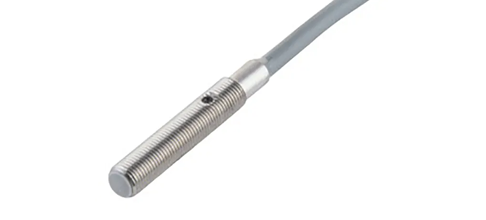

M5
• Supply voltage: 3-w DC
• Sensing distance: ≤ 1.3 mm (F)
• Output: NPN/PNP - NO/NC
• Connectivity: cable or M8 connector
• Housing: stainless steel, IP67
• Special features: miniature series, operating frequency up to 6 kHz
• Approvals: CE - UL - CSA
|

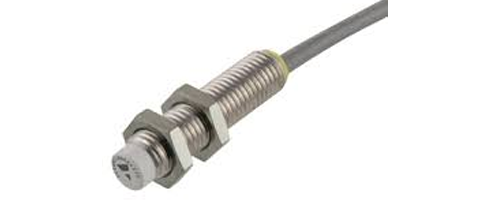

Ø6.5
• Supply voltage: 3-w DC
• Sensing distance: ≤ 4 mm (F/NF)
• Output: NPN/PNP - NO/NC
• Connectivity: cable, M8 connector or M12 connector (M8)
• Housing: stainless steel, IP67
• Special features: miniature series
• Approvals: CE - UL - CSA
|
Ø4 - M5 - M8 with IO-Link
• Additional specifications: from standard
• IO-Link Ver. 1.1
• Time delay, ON, OFF, One shot
• Outputs: configurable NO or NC; NPN, PNP or Push-Pull
• Switching mode: single point, two point or window
• Adjustable Sn and hysteresis
• Revolution counter, rotational speed monitoring & temperature alarm
|

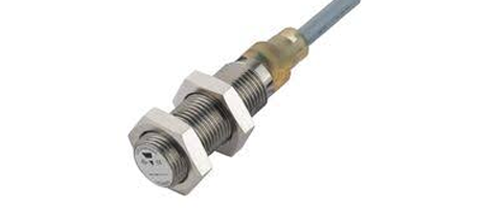

M12
• Supply voltage: 2-w, 3-w DC, Namur, 2-w AC
• Sensing distance: ≤ 10 mm (F/QF/NF)
• Output: NPN/PNP - NO/NC
• Connectivity: cable or M12 connector
• Housing: NPB, stainless steel, IP67
• Special features: complete range, short, long and extra-short body
• Approvals: CE - UL - CSA
|

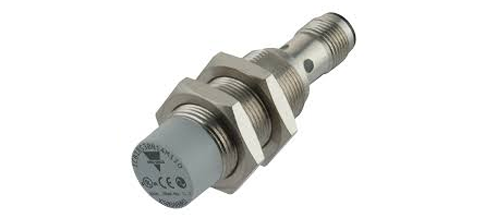

M18
• Supply voltage: 2-w, 3-w DC, Namur, 2-w AC
• Sensing distance: ≤ 20 mm (F/QF/NF)
• Output: NPN/PNP - NO/NC
• Connectivity: cable or M12 connector
• Housing: NPB, stainless steel, IP67
• Special features: complete range, short or long body
• Approvals: CE - UL - CSA
|

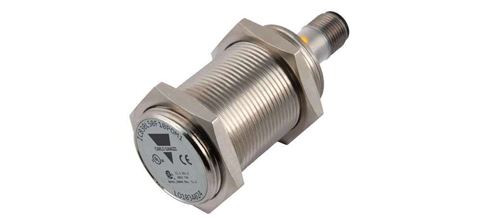

M30
• Supply voltage: 2-w, 3-w DC, Namur, 2-w AC
• Sensing distance: ≤ 40 mm (F/NF)
• Output: NPN/PNP - NO/NC
• Connectivity: cable or M12 connector
• Housing: NPB, stainless steel, IP67
• Special features: complete range, short or long body
• Approvals: CE - UL - CSA
|
M12 - M18 - M30 with IO-Link
• Additional specifications: from standard
• IO-Link Ver. 1.1
• Time delay, ON, OFF, One shot
• Outputs: configurable NO or NC; NPN, PNP or Push-Pull
• Switching mode: single point, two point or window
• Adjustable Sn and hysteresis
• Revolution counter, rotational speed monitoring & temperature alarm
|

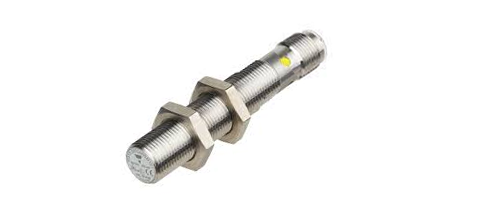

M12 - M18 - M30 E1
• Supply voltage: 3-w DC
• Sensing distance: ≤ 22 mm (F/NF)
• Output: NPN/PNP - NO/NC
• Connectivity: cable or M12 connector
• Housing: stainless steel, IP67, IP68, IP69K
• Special features: Mobile equipment applications. 8-60 VDC, Load dump protection, 200 V/m radiated immunity
• Approvals: CE - cULus - E1
|

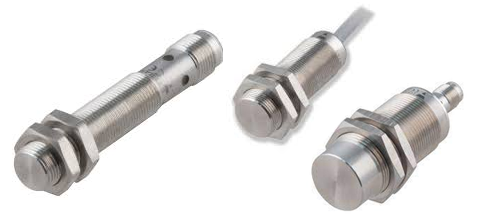

M12 - M18 - M30 Full Metal
• Additional specifications: from IO-Link
• Condition monitoring: Low margin alarm, Proximity alarm, Activation Level
• Find my sensor function
• Full metal face resistant up to 260 bar pressure for M12, 200 bar for M18 and 100 bar for M30
• Housing: stainless steel, IP67, IP68, IP69K
• Approvals: CE - cULus - ECOLAB
|
Rotatable Head
• Supply voltage: 4-w DC
• Sensing distance: ≤ 40 mm (F/NF)
• Output: NPN/PNP - NO+NC
• Connectivity: M12 connector
• Housing: PBT, IP67, IP68, IP69K
• Special features: rotatable sensing face, quick mounting system, 4 corner LEDs
• Approvals: CE - cULus
|

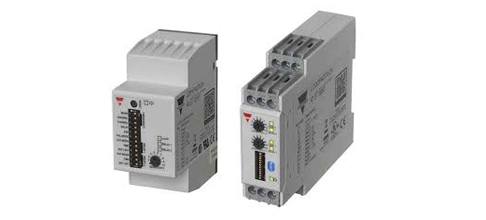

Loop Detector
• Supply voltage: 24-240 VAC/VDC, 12-36 VAC/VDC [LDP]
• Input: 1 loop or dual loop
• Output: 2 x SPDT, relay output
• Mounting: plug [LDP], DIN-rail [LDD]
• Special features: automatic sensitivity boost, automatic frequency tuning, fail safe/fail secure, advanced diagnostics
• Approvals: CE - UL [LDP] - CSA [LDP] - cULus [LDD]
|
