We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Capacitive Sensors from Pune, Maharashtra, India.

Capacitive Sensors REQUEST A QUOTE
Carlo Gavazzi is renowned for its TRIPLESHIELD™ capacitive proximity sensors with outstanding electromagnetic immunity. The 4th Generation TRIPLESHIELD™ sensors feature several significant upgrades, including superior electromagnetic immunity and refined sensitivity adjustment with stability indication and are now also available with on-board IO-Link communication. New benefits include a dust and temperature alarm function. Featuring an ECOLAB certified sensor housing rated to IP69K standard, these sensors are exceptionally well suited for a precise detection in environments subject to high temperatures, harsh chemicals, steam and high-pressure cleaning. The sensors are ideal for a wide range of applications that require reliable measurements or monitoring of solid materials or fluids.

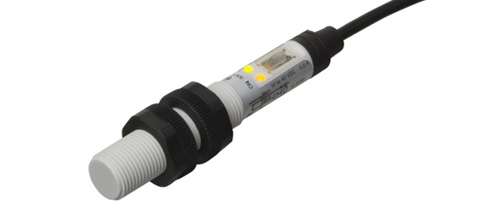

M12 Tripleshield™ • Supply voltage: DC 4-wire • Sensing distance: < 8 mm (F/NF) • Output: NPN/PNP - NO+NC • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: high immunity to EMI • Approvals: CE - UL - CSA

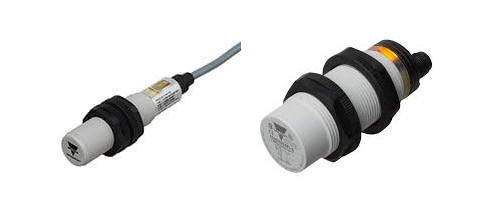

M18 and M30 Tripleshield™ • Supply voltage: AC 2-wire • Sensing distance M18: < 12 mm (F/NF) • Sensing distance M30: < 25 mm (F/NF) • Output: SCR N0+NC • Connectivity: cable or M12 connector • Housing: PBT, IP67 • Features: high immunity to EMI • Approvals: CE - UL - CSA

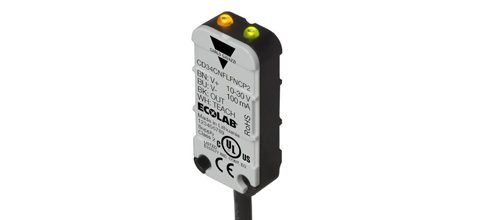

CD34 • Supply voltage: DC 4-wire • Sensing: water-based liquids • Output: NPN/PNP NO/NC • Connectivity: cable or M8 4-pin pig-tail • Housing: PBT, IP65, IP66, IP67, IP68, IP69K • Features: automatic tankwall suppression • Approvals: CE - cULus - ECOLAB

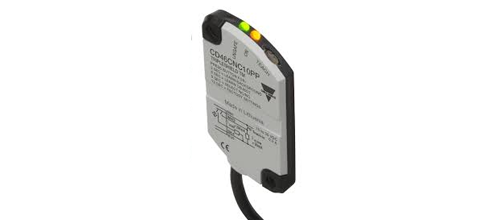

CD46 Tripleshield™ • Supply voltage: DC 4-wire • Sensing distance: < 10 mm (F/NF) • Output: NPN/PNP NO/NC, Teach • Connectivity: cable or M12 pig-tail • Housing: PBT, IP68 • Features: high immunity to EMI • Approvals: CE - UL - CSA

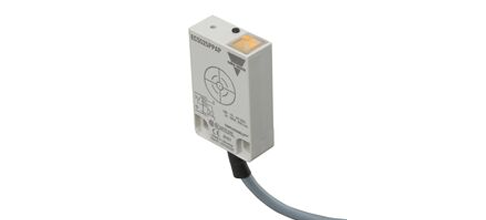

EC55 (VC55) Tripleshield™ • Supply voltage: DC 4-wire • Sensing distance: < 25 mm (F/NF) • Output: NPN/PNP NO+NC • Connectivity: cable or M12 pig-tail • Housing: PC, IP67 • Features: high immunity to EMI • Approvals: CE - UL - CSA

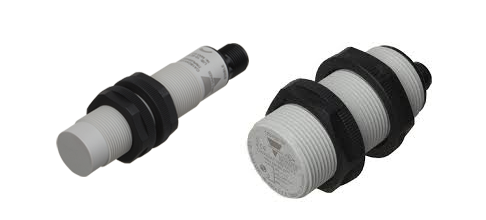

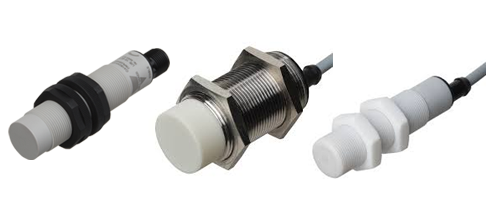

CA18 and CA30 CA18 and CA30 with IO-Link 4th Gen. Tripleshield™ • Supply voltage: DC 4-wire • Sensing distance M18: < 15 mm (F/NF) • Sensing distance M30: < 30 mm (F/NF) • Output: NPN/PNP NO+NC • Connectivity: cable or M12 connector • Housing: PBT, IP67, IP68, IP69K • Features: superior immunity to EMI
CA18 and CA30 with IO-Link • Additional specifications: from standard • IO-Link Ver. 1.1 • Time delay, ON, OFF, One shot • Logic: AND, OR, XOR, Gated SR-FF • External input • Outputs: NPN, PNP or Push-Pull • Diagnostic functions: Operation hours, Power cycles, Detection cycles, Temperatures, Short-circuit, Maintenance

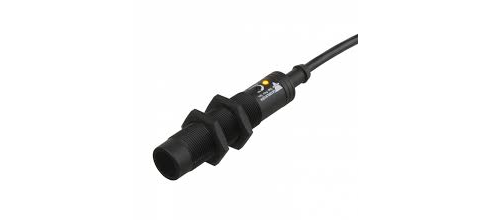

M18 Chemical Resistant • Supply voltage: DC 4-wire • Sensing distance: < 12 mm (F/NF) • Output: NPN/PNP NO+NC • Connectivity: cable • Housing: PP or PVC, IP67 • Features: high chemical resistance • Approvals: CE

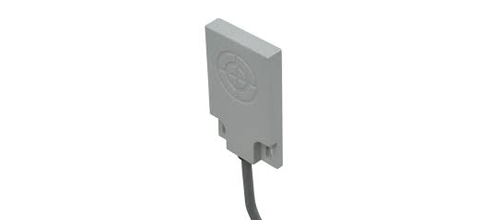

CD50 • Supply voltage: DC 4-wire • Sensing distance: < 10 mm (F) • Output: NPN/PNP NO/NC • Connectivity: cable • Housing: PPE-TPE, IP67 • Approvals: CE

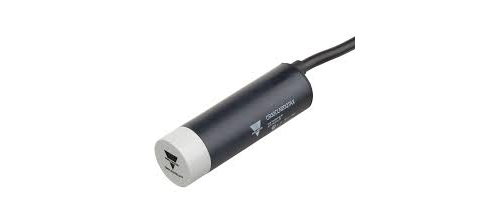

Ø18 TEX Zone 22 • Supply voltage: DC 4-wire, AC 2-wire • Sensing distance: < 12 mm (NF) • Output: NPN/PNP NO+NC, SCR N0/NC • Connectivity: cable • Housing: PBT, IP67 • Features: fixed ON-delay 30 sec • Approvals: CE - UL - CSA - ATEX

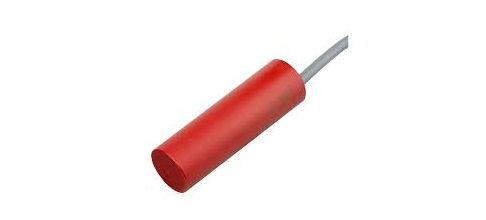

Ø32 VC11/12 • Supply voltage: DC 4-wire • Sensing distance: < 20 m • Output: NPN/PNP NO+NC • Connectivity: cable or M12 connector • Housing: NPB, IP67 • Sensor types: D, R, P and T • Approvals: CE - cULus
Ø32 TEX Zone 20 • Supply voltage: AC/DC 5-wire, AC 5-wire • Sensing distance: < 20 mm (NF) • Output: SPDT 2 A • Connectivity: cable • Housing: PBT, IP67 • Features: adj. ON or OFF delay 600 sec • Approvals: CE - cULus (M24), ATEX $capacitive Sensors$
