Carlo Gavazzi offers a comprehensive range of proximity magnetic sensors to be used in detection applications. They are employed in conjunction with an external magnet: when the sensor approaches the magnet, the output from the sensor changes the status. There is a wide variety of styles available including rectangular, cylindrical and slotted. Safety magnetic sensors with special coded magnets are available in compact or standard rectangular housings, the ideal solution to monitor sliding, hinged and removable safety guards. Magnetic sensors are frequently used for elevators and lifts, gate control, level detection and access control. Some proximity and level sensors are certified for use in explosive environments (ATEX).
|
Ø 6
• Max. switch. power contact: 10 VA
• Operating distance: > 8 mm
• Output: NO
• Connectivity: 0.5 m twin lead cable
• Housing: plastic, IP67
• Special features: cylindrical series
• Approvals: CE
|
Ø 13,5
• Max. switch. power contact: up to 120 VA
• Operating distance: 3 - 12 mm
• Output: NO, NC, CO
• Connectivity: 0.5 m PVC cable
• Housing: plastic, IP67
• Special feature: cylindrical series
• Approvals: CE
|

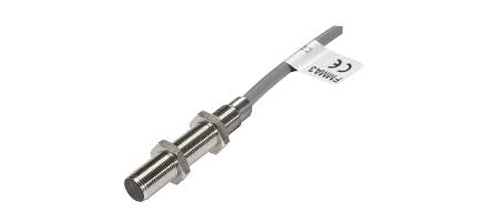

M8
• Max. switch. power contact: up to 10 VA
• Operating distance: 8 - 28 mm
• Output: NO, CO
• Connectivity: 2 m PVC cable
• Housing: stainless steel or NPB, IP67
• Special feature: cylindrical series
• Approvals: CE
|

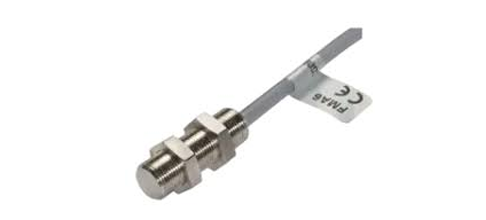

M10
• Max. switch. power contact: up to 120 VA
• Operating distance: 7 - 36 mm
• Output: NO, CO
• Connectivity: 2 m PVC cable
• Housing: brass or NPB, IP67
• Special feature: cylindrical series
• Approvals: CE
|

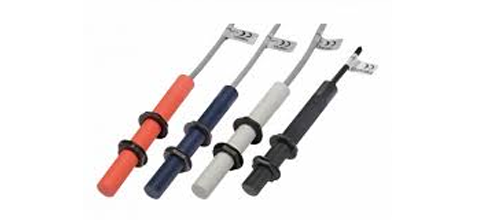

M12
• Max. switch. power contact: up to 120 VA
• Operating distance: 2 - 20 mm
• Output: NO, NC, CO, bistable
• Connectivity: 2 m PVC cable or 2 m silicone cable
• Housing: brass, NPB, plastic, IP67
• Special feature: includes a special family for elevators
• Approvals: CE
|

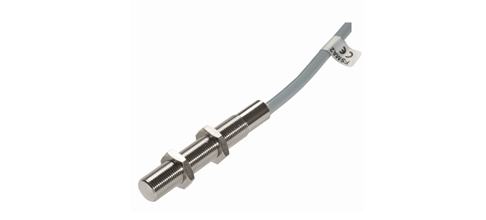

M16
• Max. switch. power contact: up to 100 VA
• Operating distance: 5 - 32 mm
• Output: CO, Bistable
• Connectivity: 2 m PVC cable or 0.5 m silicone cable
• Housing: brass, plastic, IP67
• Special features: includes a special family up to 150°C
• Approvals: CE
|

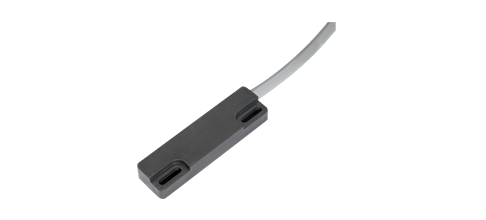

Flat Type
• Max. switch. power contact: up to 120 VA
• Operating distance: 5 - 40 mm
• Output: NO, NC, CO, bistable
• Connectivity: PVC cable, pig tail, twin lead cable
• Housing: plastic, IP67
• Special features: includes a family with 2xNC outputs
• Approvals: CE
|

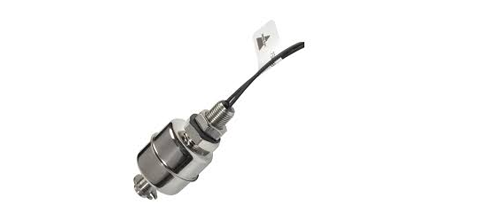

Level (Inox)
• Max. switch. power contact: up to 120 VA
• Float diameter: Ø 28, Ø 53
• Output: NO, NC, CO, NO/NC
• Connectivity: silicone cable, XLPE cable
• Housing: stainless steel, IP67, IP68
• Special feature: includes a family up to 200°C
• Approvals: CE
|

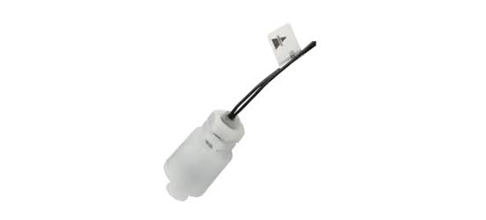

Level (Plastic)
• Max. switch. power contact: up to 120 VA
• Float diameter: Ø 25, 17.5, 31, 44, 45 mm
• Output: NO, CO, NO/NC
• Connectivity: PVC cable, silicone cable, XLPE cable
• Housing: plastic, IP67, IP68
• Special feature: possibility to reverse the output function
• Approvals: CE
|

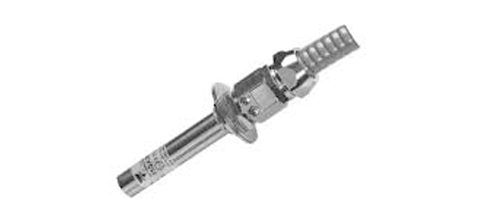

ATEX
• Max. switch. power contact: up to 100 VA
• Operating distance: 8 - 35 mm
• Output: NO, NC, CO
• Connectivity: silicone, HF PUR, PVC cable
• Housing: stainless steel, self-ext. plastic, IP66, IP67
• Special features: Category 2G, 2D or 1G, 1D
• Approvals: CE - TUV Sud
|

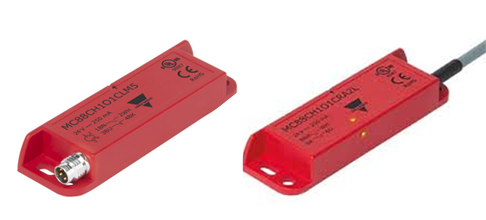

Safety Sensors (Standard)
• Max. switch. power contact: 6 W
• Operating distance (Sao): 5 mm, 8 mm, 18 mm depending on actuator
• Output: 2 NO, 1 NO + 1 NC, 2 NO + 1 NC
• Connectivity: PVC cable, M8-plug, pig-tail with M12 connector
• Housing: rectangular, plastic, IP67, IP69K [Plug version without LED]
• Approvals: CE - cULus
|

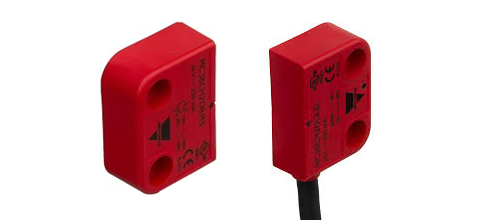

Safety Sensors (Compact)
• Max. switch. power contact: 6 W
• Operating distance (Sao): 5 mm
• Output: 2 NO, 1 NO + 1 NC, 2 NO + 1 NC
• Connectivity: PVC cable, M8-plug
• Housing: rectangular, plastic, IP67, IP69K [Plug version without LED]
• Special features: compact dimensions, left or right exit, with or without LED
• Approvals: CE - cULus
|
