We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, IIoT Data Management, Communication and Controls from Pune, Maharashtra, India.

IIoT Data Management, Communication and Controls REQUEST A QUOTE
The mounting of a power analyzer or an energy meter on a power distribution unit is not enough to effectively manage the whole electrical installation, because the data available on the display would seldom be read and controlled. To be effective, remote reading and reporting of historical data is required. A control room can gather the readings while the data can be analysed and used as a basis for decision-making, all thanks to a fully automated system. Carlo Gavazzi can provide solutions for small, medium size and large plants for energy efficiency monitoring, photovoltaic monitoring and datacenter monitoring.
MAIA Cloud • Cloud solution for remote management of IoT devices • Compatible with UWP4.0, UWP4.0 SE and XAP. • Secure VPN Management • User authentication and organization management • Remote connection to gateways, connected endpoints and connected meters
Em2-Server • Cloud or On-Premise solution for multi-site energy management • Virtual machine software integrating database and web-server • Data aggregation from up to 100 sites/installations • Advanced data management functions • Management of up to 100 UWP units

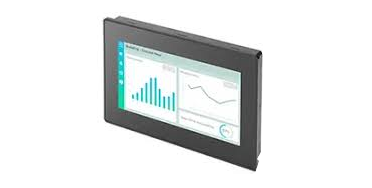

HMI Displays BTM Series • 7", 10" and 15.6" colour HMI displays • Fully programmable by the dedicated BTM-PC- IDE software • IIoT data distribution via MQTT and OPC UA • BACnet, Modbus and KNX protocols with gateway/routing capabilities • Ethernet, serial and USB ports

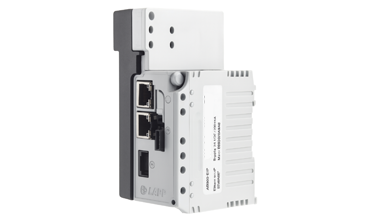

Multi-function IIoT Edge XAP10RSEXX • Controller and Gateway, PLC for Building Automation Functions and energy management. • Fully programmable by the dedicated BTM-PC- IDE software • Codesys and Node-RED capabilities • Ethernet, serial and USB ports

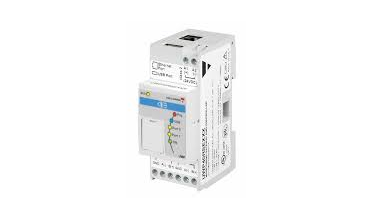

IIoT Edge Devices UWP 4.0 / UWP 4.0 SE • Datalogger / Gateway / Controller with Web-Server, for energy efficiency management applications • Security Capabilities Verified by UL to level SILVER (SE) • MAIA Cloud secure remote access • Dashboards and reports

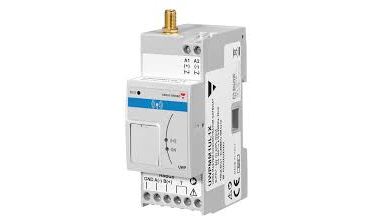

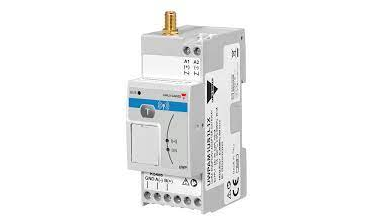

Long Range Wireless Gateway UWPM • LoRa master concentrator that permits UWP to gather data from multiple UWPA adapters. • Long-range wireless (EU868 and US915 Bands, Europe and North America) • Comprehensive solution for integrating CG meters and analysers into CG private LoRa network • Universal power supply
Long Range Wireless Solution UWP A • Endpoint adapter that provides LoRa® or LoRaWAN® communication to an RS485 Carlo Gavazzi meter • Long range wireless (EU868 and US915 Bands, Europe and North America) • Up to 10 km range in open air, 1 km in typical applications. • Universal power supply

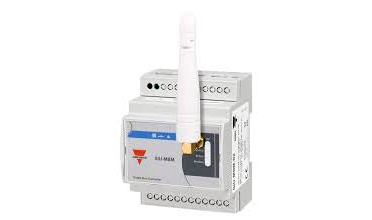

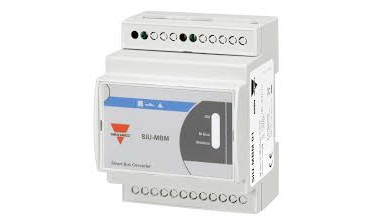

M-Bus to Modbus / TCP Gateway SIU-MBM-02 • M-Bus to Modbus / TCP gateway • 20 wired M-Bus devices and 32 wireless M-Bus devices • Compatible with SIU-MBC radio transmitter (pulse output counter) • Set-up by free UCS software • Approvals: CE • Rapid and automatic integration with the UWP 4.0
M-Bus to Modbus/TCP Gateway SIU-MBM01 • M-Bus to Modbus / TCP gateway • Up to 20 M-Bus devices (SIU-MBM-01) • Up to 160 M-Bus devices (SIU-MBM-01-160) • Set-up by free UCS software • Approvals: CE • Rapid and automatic integration with the UWP 4.0

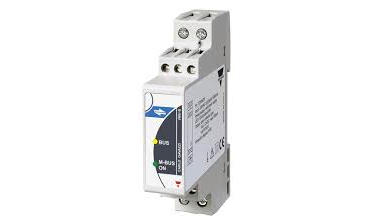

M-bus to Modbus converter VMU B • DIN-rail mounting • RS485 Modbus master • For EM210, EM270, EM271, EM280, WM15 • M-Bus output port • Approvals: CE

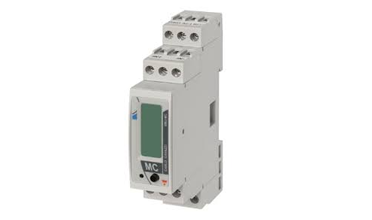

Pulse concentrator VMU-MC • Remote input status reading / tariff management / pulse counting • Can be used singularly or with the addition of VMU-OC modules (from 1 to 3) • Plug'n'play connection to UWP 4.0 or UWP 4.0 SE 6 digits LCD display

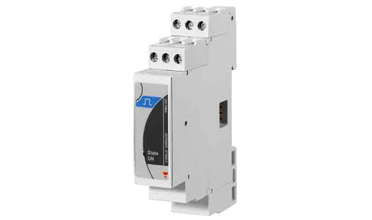

Pulse Concentrator VMU-OC • Pulse counter accessory module • Powered by VMU-MC • Totalizers calculation and Modbus/ RTU communication • Each unit handles up to 3 S0 inputs • Suited for small spaces and existing systems with pulse output meters
