We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Soft Starters from Pune, Maharashtra, India.

Soft Starters

Carlo Gavazzi offers a comprehensive range of soft starting and motor reversing solutions for single and three phase squirrel cage a.c. induction motors. Carlo Gavazzi offers solutions specifically designed for scroll compressors (RSBS, RSBD, RSBT, HDMS). For other applications such as centrifugal pumps, ventilators, dryers, mixers, fans, hydraulic pumps and piston compressors, general purpose solutions such as the RSGD and RSGT are available. Carlo Gavazzi soft starters are designed with self-learning algorithms for ease of use and better load matching. The RGTS is a fully solid-state soft starter for single phase applications that require high frequency switching. In addition, customized solutions to satisfy specific customer requests can be provided.

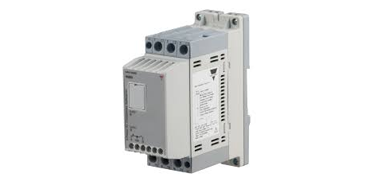

Scroll Compressor Soft Starters RSBD 45 mm
• Operational current: 12 to 45 A
• Self-learning algorithm with current balancing
• Top of ramp and alarm relay indication
• Max. starts per hour: 12
• Approvals: CE - cULus - EAC

Soft Starters

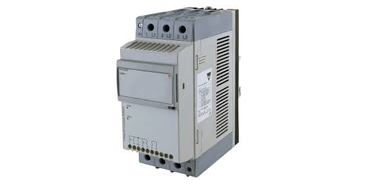

Scroll Compressor Soft Starters RSBD 75 mm
• Operational current: 55 to 95 A
• Self-learning algorithm for current reduction
• No user adjustments required
• Max starts per hour: 12
• Approvals: CE - cULus - EAC

Soft Starters

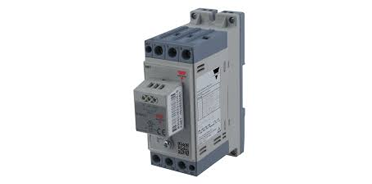

Scroll Compressor Soft Starters RSBT 45 mm
• Operational current: 16 to 32 A
• Self-learning algorithm with high pressure function
• No user adjustments required
• Optional: serial communication (Modbus) [VC1HP]
• Max. starts per hour: 12
• Approvals: CE - cULus - VDE - CCC

Soft Starters

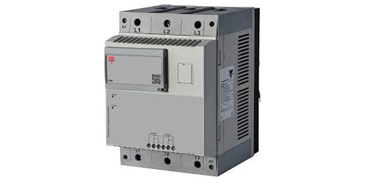

Scroll Compressor Soft Sarters RSBT 120 mm
• Operational current: 55 to 95 A
• Self-learning algorithm for improved current reduction
• Optional: serial communication (Modbus) [VC]
• Max. starts per hour: 12
• Approvals: CE - cULus - CCC - EAC

Soft Starters

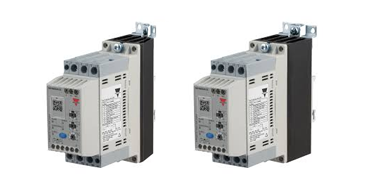

General Purpose Soft Starters RSGT 45 mm
• Operational current: 12 to 25 A
• Operational voltage: 220 - 600 VAC
• Self-learning algorithm with current ramp and current limit
• 3-phase control with internal bypass
• Optional: serial communcation (Modbus) [V10C]
• Approvals: CE - cULus - EAC

Soft Starters

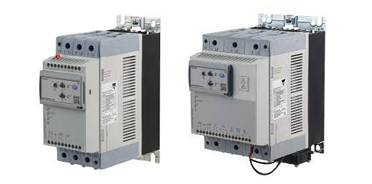

General Purpose Soft Starters RSGT 75 mm/120 mm
• Operational current: 32 to 90 A
• Operational voltage: 220 - 600 VAC
• Self-learning algorithm with current ramp and current limit
• 3-phase control with internal bypass
• Serial communication (Modbus) on all models
• Approvals: CE - cULus - EAC

Soft Starters

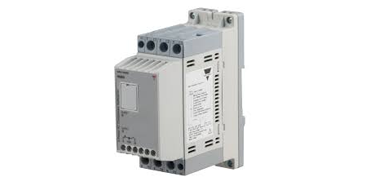

General Purpose Soft Starters RSGD 45 mm
• Operational current: 12 to 45 A
• Operational voltage: 220 - 600 VAC
• Self-learning algorithm with current ramp and current limit and current balancing
• 2-phase control with internal bypass
• Optional: motor overload protection (Class 10) [V210] Serial communication (Modbus) [210C]
• Approvals: CE - cULus - CCC - EAC

Soft Starters

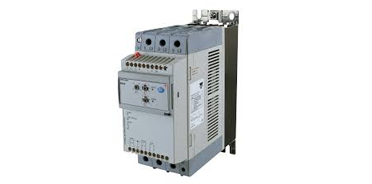

General Purpose Soft Starters RSGD 75 mm
• Operational current: 55 to 100 A
• Operational voltage: 220 - 600 VAC
• Self-learning algorithm with current ramp and current limit and current balancing
• PTC input and remote reset of alarms
• Serial communication (Modbus) on all models
• Approvals: CE - cULus - CCC - EAC

Soft Starters

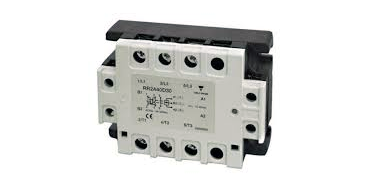

Motor Reversing Relay RR2A
• Operational current: up to 11 A
• Motor reversing relay
• Built-in interlock function
• Integrated voltage transient protection
• Approvals: CE - UL - cUL

Soft Starters

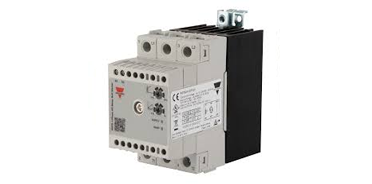

1-phase Solid State Soft Starter RGTS
• Operational current: 12/16/25 A
• Operational voltage: 100 - 240 VAC
• 100 kA short circuit current rating
• Max. starts per hour: 10
• Approvals: CE - cULus

Soft Starters

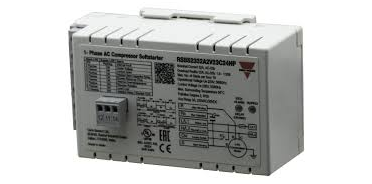

1-phase Compressor Soft Starter RSBS
• Operational current: 32 A
• Current limit starting with a high pressure function
• Max. starts per hour: 10
• Approvals: CE - cULus - EAC
• 24 VDC power supply

Soft Starters

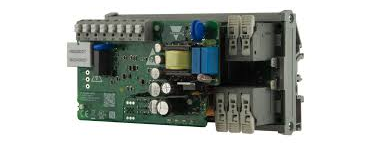

1-phase Dynamic Motor Starter HDMS
• Operational current: 12 to 37 A
• Eliminates the need for a start capacitor typically used to start single phase motors
• >70% start current reduction on scroll compressors and submersible pumps
• Tool-free terminals
• Approvals: CE - cULus
