We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Connectivity, Industrial Networking and Wind Sensors from Pune, Maharashtra, India.

Magnetic Sensors REQUEST A QUOTE
To support its wide range of sensors, Carlo Gavazzi also offers a number of accessories and connectors for all market needs, that are characterized by high quality standards. The SCTL55 is the Industry 4.0 portable and user-friendly configurator for IO-Link sensors, providing simple configuration, monitoring and advanced diagnostic data. Y-series IO-Link masters allow connection of up to 8 smart devices to the higher-level control system and support EtherNet/IP™, PROFINET IO, and MODBUS TCP. Thanks to the integrated web server and IODD interpreter it is easy to configure and access diagnostic information via a web browser, also remotely from PC or tablets. Wind sensors are designed for measuring wind direction and wind speed in a wide variety of applications including wind turbines, cranes, weather stations and solar panels.

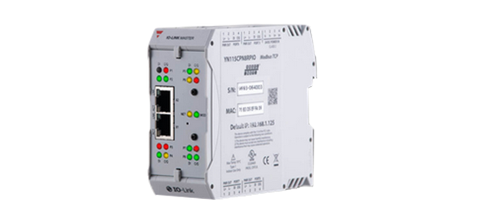

YN Series IO-Link Masters • DIN rail fielbus module • IO-Link v1.1 and v1.0 • Integrated web server accessible via browser • 8 IO-Link outputs, 2 Ethernet ports • EtherNet/IP™ or PROFINET IO, Modbus TCP • OPC UA support • Pluggable push-in and screw terminal connectors • Approvals: CE - UL - FCC

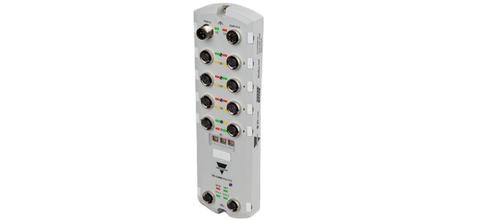

YL Series IO-Link Masters • Machine mount fielbus module • IO-Link v1.1 and v1.0 • Integrated web server accessible via browser • 8 IO-Link outputs, 2 Ethernet ports • EtherNet/IP™ or PROFINET IO, Modbus TCP • M12 connectors • OPC UA support • Approvals: CE - UL - FCC

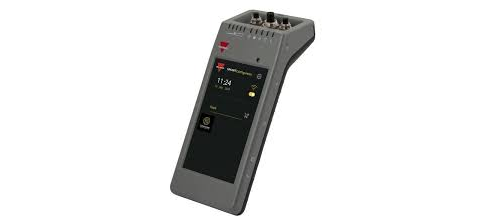

SCTL55 Smart Configurator • Handheld device for easy monitoring, diagnostics, configuration and cloning of IO-Link sensors • IO-Link v1.1 • 5.5” HD touch screen display • Automatic IODD file download via Wi-Fi • High capacity rechargeable battery • M8 3-wire, M8 4-wire and M12 connectors • Approvals: CE - FCC - IC

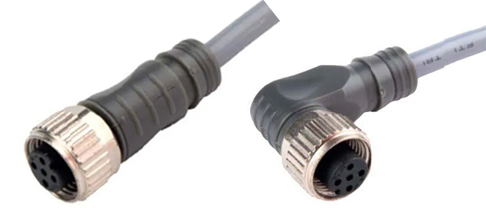

CONE1 Straight and Angled • M12 connector • Straight version [-S..] • Angled version [-A..] • 2/5 m cable length • 3/4/5 wire DC version • UL approval • IP67 rating • PVC cable or PUR cable on request

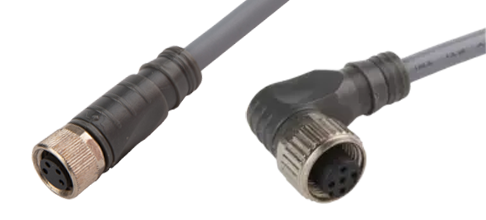

CONE5 Straight and Angled • M8 connector • Straight version [-S..] • Angled version [-A..] • 2/5 m cable length • 3 or 4 wire DC version • UL approval • IP67 rating • PVC cable or PUR cable on request

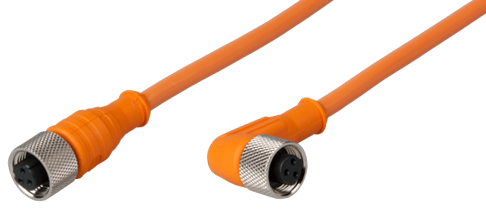

CONH6 Straight and Angled • M12 connector • Straight version [-S.] • Angled version [-A.] • 2 or 5 m cable length • 2 wire AC version • IP67 rating • PVC cable

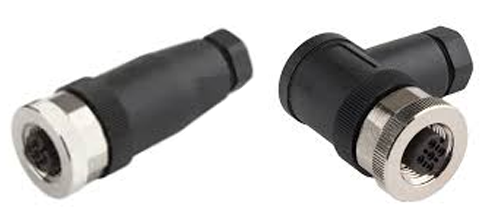

CONE14NF-S/-A Connector Only • M12 connector only • Straight version [CONE14NF-S] • Angled version [CONE14NF-A] • Field-wireable • 4 wire version • IP67 rating

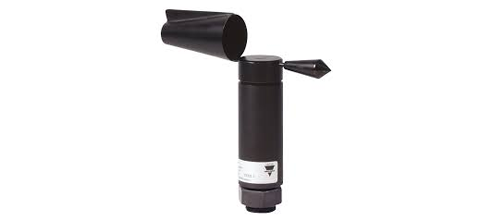

DWS-D Wind Direction • Wind vane • Measures wind direction • 0° to 360° measurement • 90° measurement interval • PNP or NPN output • -20°C to +60°C • IP54 rating • Built-in heater, High ESD protection

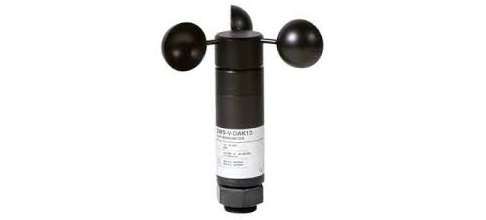

DWS-V Wind Speed • Anemometer • Measures wind speed • 2 to 30 m/s • PNP or NPN output • PVC cable connection • -20°C to +60°C • IP54 rating • Built-in heater, High ESD protection

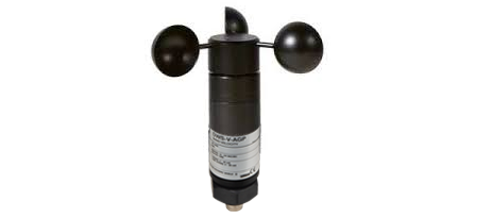

DWS-V-AGP Wind Speed • Anemometer, 4-20 mA output • Measures wind speed • 2 to 50 m/s • PNP or NPN output • M16 plug • -20°C to +60°C • IP54 rating • Built-in heater, High ESD protection
