We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Digital Panel Meters from Pune, Maharashtra, India.

Digital Panel Meters

Carlo Gavazzi offers a comprehensive range of digital panel meters, digital displays (for current meters, ammeters, voltmeters, frequency meters, temperature meters and temperature controllers, tachometers, and rate meters) and signal conditioners for OEM, panel builder, instrumentation and MRO customers. Covering most input types, our digital panel meters are well suited to any display requirements. With the modular types it is possible to realize any sort of configuration and the analogue signal can also be retransmitted to show the readings. The displayed colour can be set to change at specific thresholds, allowing any type of anomaly to be easily seen.

HMI Displays BTM Series
• 7", 10" and 15.6" colour HMI displays
• Fully programmable by the dedicated BTM-PC-IDE software
• IIoT data distribution via MQTT and OPC UA
• BACnet, Modbus and KNX protocols with gateway / routing capabilities
• Ethernet, serial and USB ports

HMI Displays

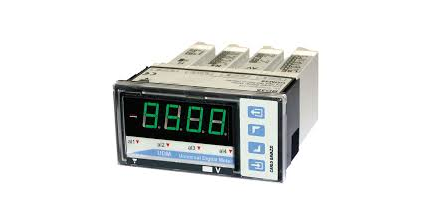

Modular Indicator / Controller UDM35
• 3½ DGT LED
• AC/DC V-I, Temperature and Resistance, Speed, Frequency and Period measurement
• Up to 4 independent alarm set-points, 20 mA/10 VDC analogue output
• RS485 or RS232, MODBUS RTU
• Panel mounting
• Degree of protection: IP67, NEMA12, NEMA4x

Modular Indicator / Controller

Modular Indicator / Controller UDM40
• 4 DGT LED
• AC/DC V-I, Temperature and Resistance, Speed, Frequency and Period measurement
• Up to 4 independent alarm set-points, 20 mA/10 VDC analogue output
• RS485 or RS232, MODBUS RTU
• Panel mounting
• Degree of protection: IP67, NEMA12, NEMA4

Modular Indicator / Controller

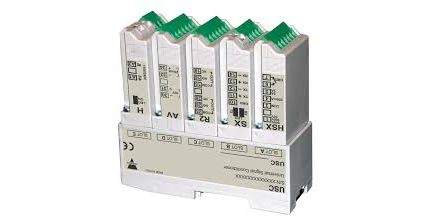

Modular Controller USC
• Modular signal's conditioner
• AC/DC V-I, Temperature and Resistance, Speed, Frequency and Period measurement
• Up to 4 independent alarm set-points, 20 mA/10 VDC analogue output
• RS485 or RS232, MODBUS RTU
• DIN-rail mounting
• Degree of protection: IP20

Modular controller USC

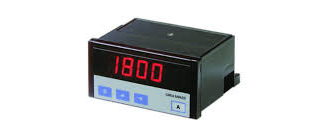

Indicator / Controller LDI35
• 3½ DGT LED or 3 DGT LED + “0” dummy μP-based
• AC / DC V-I, Temperature and Resistance
• 1 independent alarm set-point
• 48 x 96 mm
• Panel mounting
• Degree of protection: IP50 (IP65 on request)

Indicator / Controller

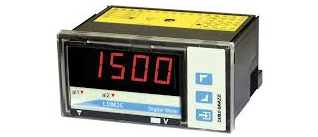

Indicator / Controller LDM35H
• 3½ DGT LED
• AC/DC V-I
• Up to 2 independent alarm set-points
• 48 x 96 mm
• Panel mounting
• Degree of protection: IP65

Indicator / Controller

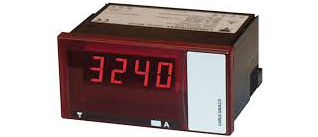

Indicator LDM30
• 3 DGT LED + “0” dummy μ-based
• AC V-I
• Dip-switch-selectable ranges
• 48 x 96 mm
• Panel mounting
• Degree of protection: IP50 (IP65 on request)

Indicator LDM30

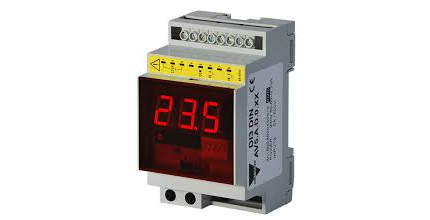

Indicator DI3-DIN
• 3 DGT μP-based
• AC/DC V-I, Frequency
• 20 Selectable CT/VT primary range
• 3-DIN modules
• DIN-rail mounting
• Degree of protection: IP40

Indicator LDM30

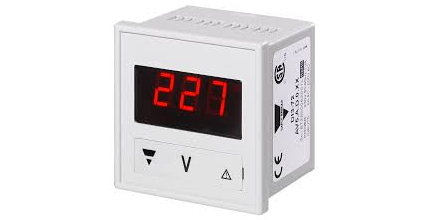

Indicator DI3-72
• 3 DGT μP-based
• AC/DC V-I, Frequency
• 18 Selectable CT/VT primary range
• 72 x 72 mm
• Panel mounting
• Degree of protection: IP50 (IP65 on request)

Indicator DI3-72
