Safety Switches and Controller
|
|
Carlo Gavazzi's range of safety modules includes modules for light curtains, safety mats, two hand control (anti-tie down devices), magnetic and safety switches and emergency stops. They are suitable for use in applications up to Performance Level "e" and Safety Integrity Level SIL 3. We also offer extension units which can be used to increase the number of safety outputs. Our safety modules are cUL and TUV approved. Our modules are powered by 24 VAC/DC and feature LED status indicators.
|

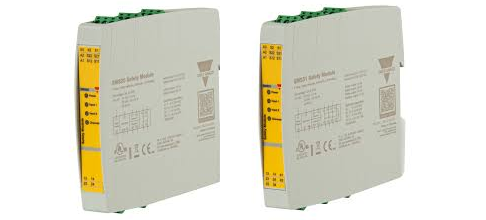

Emergency Stop Switches - SMS20 / SMS31
• Emergency stop and safety gate modules up to Performance Level "e" for category 0 emergency stops
• 2 NO safety outputs (SMS20) or 3 NO safety outputs plus 1 NC auxiliary (SMS31) with automatic, manual and monitored manual start
• Detachable screw terminals
|

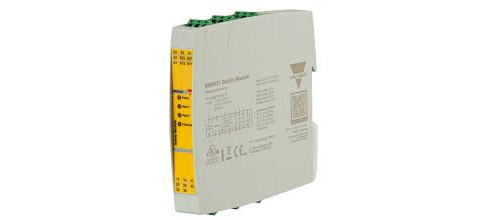

Safety Gates Switches - SMSA31
• Safety gate modules, with antivalent function, up to Performance Level "e" for safety magnetic switches
• 3 NO safety outputs plus 1 NC auxiliary with automatic, manual and monitored manual start
• Detachable screw terminals
|

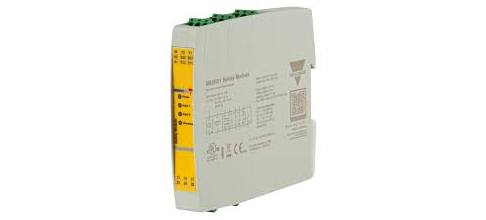

Two Hand Safety Controllers - SM2H21
• Safety module, up to Performance Level "e", for Two-hand controls Type IIIC (EN 574)
• For high risk applications such as presses and punches
• Detachable screw terminals
|

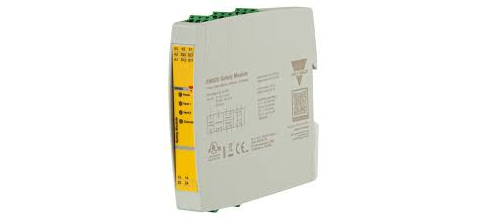

Lift Levelling Safety Controllers - SMS20
• Designed to be used in lift plants for floor levelling of the cabin.
• Compliant with standards EN 81-20, EN 81-50
• 2 NO safety outputs
• Detachable screw terminals
|

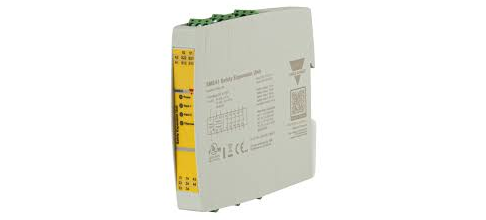

Safety Expansion Module - SME41
• The expansion module is used to increase the number of safety outputs, up to Performance Level "e"
• 4 NO instantaneous relay outputs plus 1 NC auxiliary output for feedback
• Detachable screw terminals
|

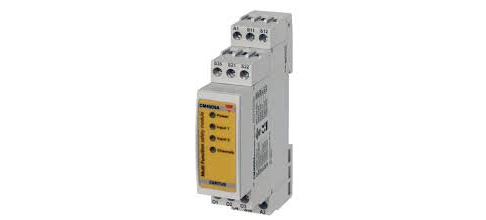

Multifunction Module Delayed Outputs
• The device can be connected with different types of input: E-stop, E-gate, limit switch, non-contact switch, safety light curtains (ESPE Type 4, Type 2), safety light beam (single beam), safety mat
• 2 x OSSD direct +2 x OSSD delayed
• Selectable delay time. Can be easily set-up through the hex-switch, from 0 to 30 sec.
|

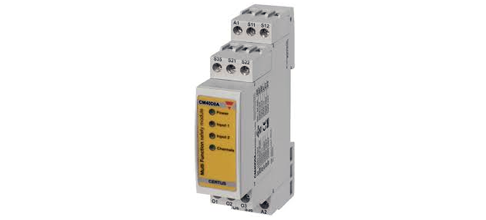

Multifunction Modules Instantaneous Outputs
• The device can be connected with different types of input: E-stop, E-gate, limit switch, non-contact switch, safety light curtains (ESPE Type 4, Type 2), safety light beam (single beam), safety mat
• 3 x OSSD (NO) + 1 OSSD Auxiliary (1 NC) (CM30D1A) or 4 x OSSD (NO) (CM40D0A)
• 4 LEDs on the front panel indicate the status and any errors during operation
|

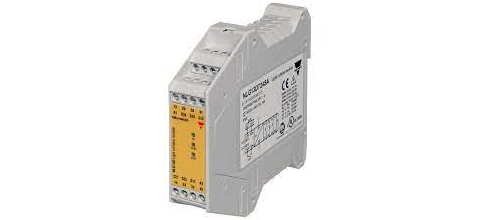

Light Curtains - NLG
• Control Electro Sensitive Protective Equipment (ESPE) with static PNP or relay outputs reaching Performance Level "e"
• 2 NO safety outputs (NLG02) or 3 NO safety outputs plus 1 NC auxiliary (NLG13) with automatic/manual or monitored manual reset version
• Fixed or detachable screw terminals
|

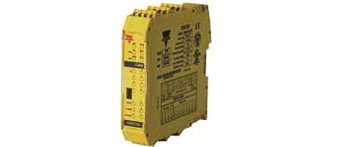

Configurable Master Module
• Configurable Master safety controller
• Simultaneous monitoring of several safety devices and commands
• 8 digital safety inputs
• 2 OSSD digital safety output pairs
• 4 Test outputs and 2 programmable status outputs and separate EDM and Start/Restart
|

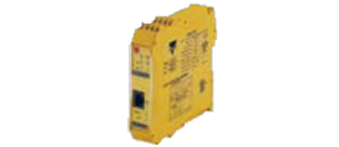

Speed Monitoring Modules
• The modules allow the configuration of up to 4 speed thresholds for each logic output (axis)
• Each module integrates two logic outputs configurable via the MSD and is therefore capable of controlling up to two independent axes
• RJ45 for encoder connections and terminal blocks for connection of proximity (up to 2 proximity per module)
|

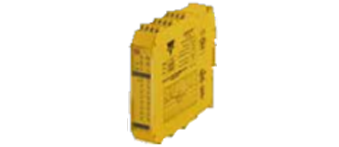

I/O Expansion Modules
• I/O module: 8I + 2O + 4 test outputs and 2 programmable status outputs
• I + Test O module: 12I + 8TO and separate EDM and Start/Restart
• Input only modules: 8/16 safety inputs + 4 test O
• Output only modules: 2/4 OSSD and separate EDM and Start/Restart
• Relay Output modules: different versions with NO and NC configurations
|
