We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Solid State Relays from Pune, Maharashtra, India.

Solid State Relays REQUEST A QUOTE
Carlo Gavazzi offers a comprehensive range of solid state relays (SSRs) covering AC and DC switching, 1-phase and 3-phase, suited for a wide range of applications. SSRs are used extensively in the plastics, packaging, food processing, semiconductor manufacturing and HVAC industries primarily for temperature control. Thanks to their fast switching capability, SSRs are the most reliable switching components for process accuracy. Over the years, SSRs have become the preferred switching solution compared to mechanical contactors as they can perform a very large number of switching cycles without breaking down. This ensures low machine downtime and hence lower running costs.

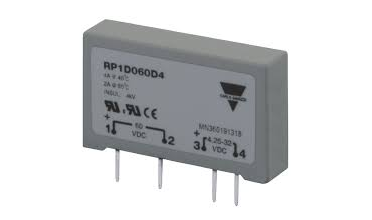

PCB Mounting RP1A, RP1D • AC or DC output switching • Zero Cross [RP1A], Instant On [RP1B] or DC [RP1D] • Ratings up to 480 VAC, 5.5 AAC [RP1A/B] • Ratings 350 VDC / 1 ADC, 60 VDC / 8 ADC [RP1D] • Approvals: CE - cURus - VDE - [RP1A/B] - EAC - UKCA

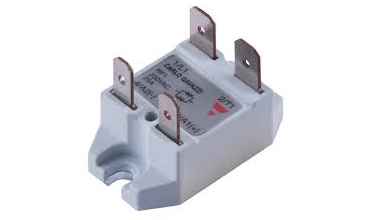

1-Phase SSR RF1 • Zero Cross [RF1A] or Instant On [RF1B] switching • Ratings up to 280 VAC, 25 AAC • Integrated transil for output protection • Control ON LED • Approvals: CE - UR - CSA - VDE - EAC - UKCA

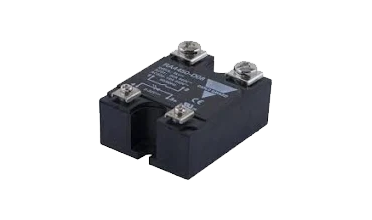

1-Phase SSR RA • Zero Cross output switching • Ratings up to 660 VAC, 110 AAC, 18000 A²s • High blocking voltage option • Control ON LED • Approvals: CE - UR - CSA - EAC - UKCA

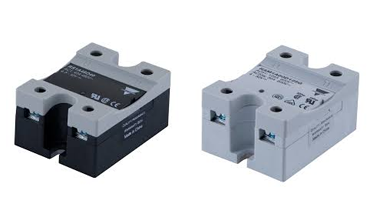

1-Phase SSR RM1, RAM1 • Zero Cross [RM1A/RAM1A] or Instant On [RM1B/RAM1B] switching • Ratings up to 759 VAC, 125 AAC, 18000 A²s • Integrated varistor for output protection • Control ON LED • Approvals: CE - UR - CSA - CCC - EAC - UKCA - VDE [RAM1]

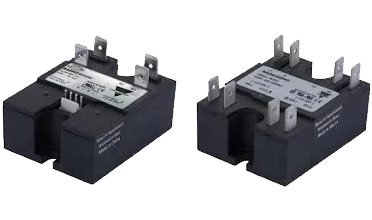

2-Pole SSR RA2A • 2-poles in 1 housing, independent control • Ratings up to 660 VAC, 40 AAC per pole • Zero Cross switching • DC control voltage • Approvals: CE - UR - EAC - UKCA - CSA (excl. RA2A..C)

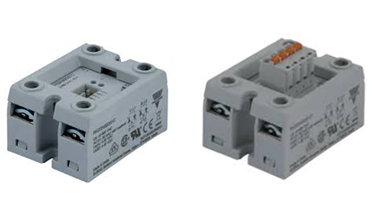

2-Pole SSR RKD2, RK2 • 2-poles in 1 housing, independent control [RKD2] or common control [RK2] • Ratings up to 660 VAC, 75 AAC per pole, 9800 A²s • Zero Cross or Instant On switching • DC control voltage • Approvals: CE - UR - CSA - VDE - EAC - UKCA

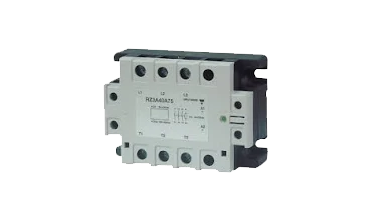

3-Phase SSR RZ3A • 3-phase Zero Cross switching • Suitable for resistive and inductive loads • Ratings up to 759 VAC, 75 AAC • Control ON LED • Approvals: CE - UR - CSA - EAC - UKCA

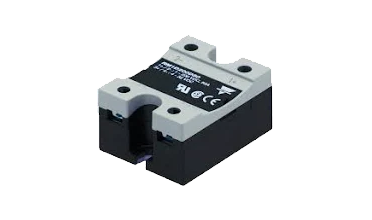

DC SSR RM1D • DC switching • Ratings up to 100 A /60 VDC, up to 50 A / 200 VDC, up to 10 A / 500 VDC • DC control voltage • Control ON LED • Approvals: CE - UR - CSA - EAC - UKCA

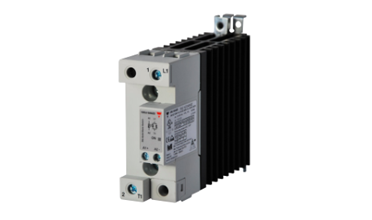

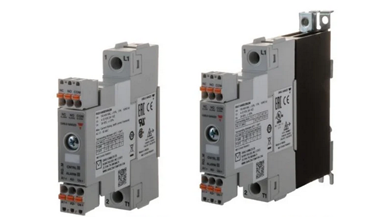

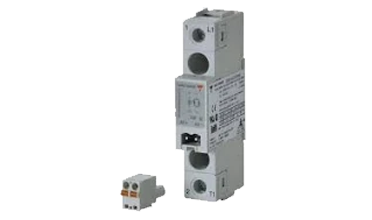

Slim Line SSR RGS1 • Compact, 17.5 mm wide • Zero Cross [RGS1A] or Instant On [RGS1B] switching • Ratings up to 759 VAC, 90 AAC, 18000 A²s • AC or DC control • Approvals: CE - UR - CSA - VDE - EAC - UKCA - GL (50 AAC only)

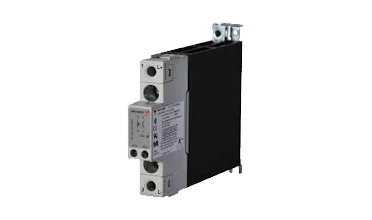

Slim Line SS contactors RGC1 • Min. product width 17.5 mm (37 AAC) up to 70 mm (85 AAC) • Ratings up to 660 VAC, 85 AAC, 18000 A²s • E-type (contactor) or U-type (SSR) terminal layout • 100 kA UL short circuit current rating • Approvals: CE - cULus - VDE - EAC- UKCA - GL (up to 30 AAC)
Slim Line SS Contactors RGH1 • Zero Cross switching, Blocking voltage up to 1600 VP • Ratings up to 759 VAC, 65 AAC, 6600 A²s • Integrated varistor on output (up to 660 VAC) • 100 kA UL short circuit current rating • Approvals: CE - cULus - VDE - EAC - UKCA

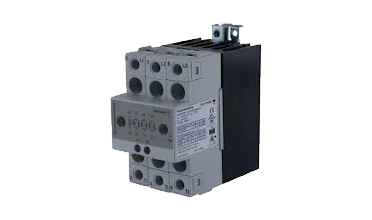

3-Phase SS Contactors RGC2A, RGC3A • 3-pole [RGC3A] or 2-pole switching + 1 direct pole [RGC2A] • Ratings up to 660 VAC, 75/65 AAC [RGC2/3] • Motor ratings up to 11 kW/ 15 HP @ 400 VAC • RGC..M for system malfunction monitoring • Approvals: CE - cULus - EAC - CCC - UKCA - VDE [RGC..10]

Solid State Relays REQUEST A QUOTE
Carlo Gavazzi now offers additional features to the switching function of the SSR. Integrated monitoring of loads or SSR malfunction ensures a timely failure detection and so scrap and rework costs in production plants are kept to a minimum. SSRs with a communication interface embrace Industry 4.0. Data is accessible from SSRs in real time and can be used to predict machine abnormalities in a timely manner to avoid stoppages. Carlo Gavazzi also offers a range of accessories that complement the solid state relay solutions, such as heatsinks, terminal adaptors, protection covers and thermal interfaces. Carlo Gavazzi's SSRs conform to international standards.

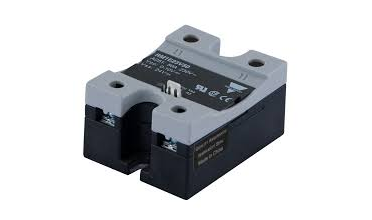

Proportional Controllers RM1E • Phase angle switching • Ratings up to 660 VAC, 125 AAC, 18000 A²s • 4-20 mA or 0-10 VDC analogue input • Integrated varistor for output protection • Approvals: CE - UR - CSA - EAC - UKCA

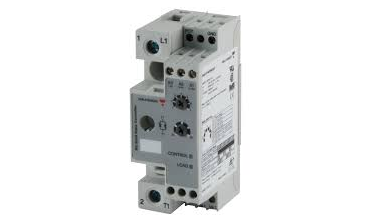

Proportional Controllers RGS1P • Selectable switching mode - Phase angle, full cycle, advanced full cycle switching or soft start • 4-20 mA or 0-10/0-5/1-5 V input • Ratings up to 660 VAC, 90 AAC • Integrated varistor for output protection • Approvals: CE - UR - CSA - EAC - UKCA

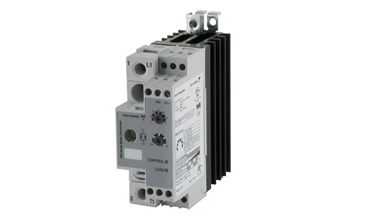

Proportional Controllers RGC1P • Selectable switching mode - Phase angle, full cycle, advanced full cycle switching or soft start • 4-20 mA or 0-10/0-5/1-5 V input • Ratings up to 660 VAC, 63 AAC • Integrated varistor for output protection • Approvals: CE - cULus - EAC - UKCA

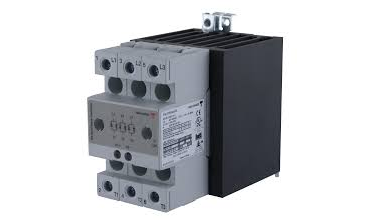

Proportional Controllers RGC2P, RGC3P • Zero Cross [RM1A/RAM1A] or Instant On [RM1B/RAM1B] switching • Ratings up to 759 VAC, 125 AAC, 18000 A²s • Integrated varistor for output protection • Control ON LED • Approvals: CE - UR - CSA - CCC - EAC - UKCA - VDE [RAM1]

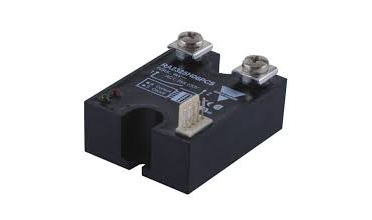

System Monitoring RA..S • Monitoring for mains loss, load or SSR failure • Ratings up to 530 VAC, 110 A • DC control voltage, DC external supply • Normally open or normally closed alarm output • Approvals CE - UR - CSA - EAC - UKCA
System Monitoring RGS..M, RGC..M • Monitoring for system fault (mains loss, load loss, SSR open and short circuit), SSR internal error and supply out of range • Ratings up to 660 VAC, 90 AAC • DC control voltage, DC external supply • Transistor output for remote alarm signalling • Approvals CE - UR - CSA - cULus [RGC] - EAC - UKCA

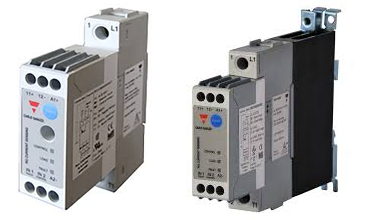

Current Sensing RGS1S, RGC1S • Zero Cross switching with integrated current measurement • Partial load failure detection (1/6) • Monitoring for system malfunction with alarm output • Ratings up to 660 VAC, 90 AAC, 18000 A²s • Approvals: CE - UR - CSA - cULus [RGC] - EAC - UKC

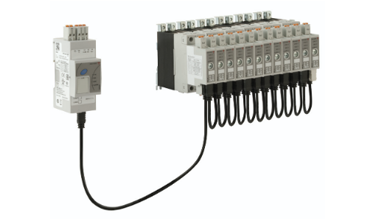

Communication Interface NRG • PROFINET, EtherNet/IP™, EtherCAT, Modbus RTU / TCP • 32 SSRs per bus chain • ON/OFF, Full cycle, Advanced full cycle, Burst, Phase angle and soft start switching • Read-outs: current, voltage, frequency, power, energy, running hours and diagnostics • Ratings up to 660 VAC, 90 AAC • Approvals: CE - cULus - UR - CSA - EAC - UKCA - CCC

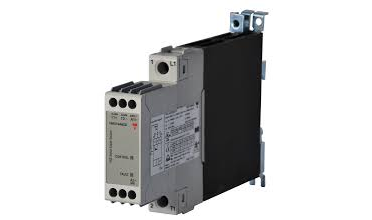

Integrated Over Temperature Protection RGC..P • Ratings up to 660 VAC, 85 AAC, 18000 A²s • Output protected against overheating, automatic re-start after cool down • Transistor alarm output for remote signalling • Control ON and Fault LED indication • Approvals: CE - cULus - VDE - EAC - UKCA

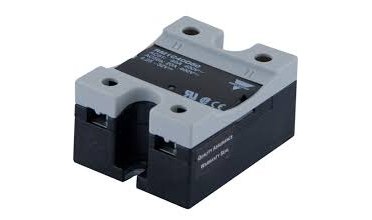

Peak Switching RM1C • Ideal for switching of transformers and highly inductive loads • Ratings up to 660 VAC, 100 A • DC control voltage • Control ON LED • Approvals: CE - cURus - CSA - EAC - UKCA

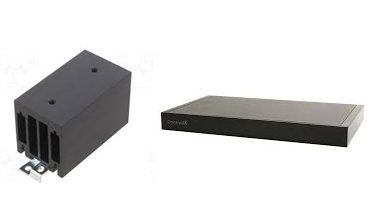

Heatsinks • A wide range of heatsinks suitable for DIN, panel or thru wall mounting • Thermal resistance values from 5.4 to 0.4°C/W • 24 VDC, 115 VAC or 230 VAC supply voltage for heatsinks with integrated fan • RoHS compliant

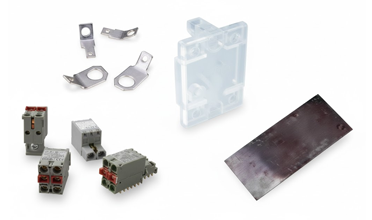

Accessories • A wide range of other accessories suitable for use with SSRs: thermal pads, touch protection covers, varistors, terminal adaptors, cable accessories • Optionally pre-assembled from factory • All accessories are RoHS compliant
