We are Authorized Channel Partners, Distributor, Dealer, Importer for Carlo Gavazzi, Energy Meters and Analysers from Pune, Maharashtra, India.

Energy Meters and Analysers - Carlo Gavazzi REQUEST A QUOTE
Main electrical metering is essential to monitor all the electrical variables coming from the submetering. Installations are becoming more and more demanding, some of them powering critical loads, so power quality with harmonic analysis is vital. Carlo Gavazzi’s range provides various mounting and installation solutions to meet different application requirements. In many cases the meters, in an electrical installation, have to measure high currents, which is why Carlo Gavazzi offers a comprehensive range of current transformers, compatible with both the main meters and the submeters.

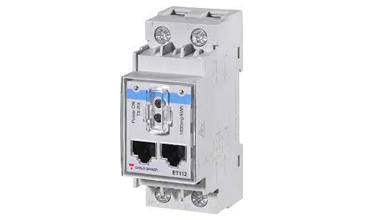

Energy Transducer ET112 • DIN-rail mounting • 1-phase, 120 or 240 VAC, 100 AAC • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, optical port • Approvals: CE - UKCA

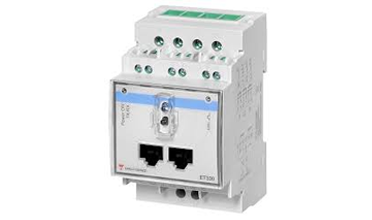

Energy Transducer ET330 • DIN-rail mounting • 400 to 480 VLL AC, 5 AAC • Class 0.5S (kWh), 0.5% RDG (V, A) • RS485 Modbus port, optical port • Approvals: CE - cULus

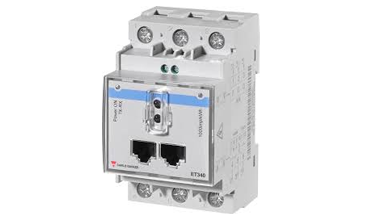

Energy Transducer ET340 • DIN-rail mounting • 208 to 400 VLL AC, 65 AAC • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, optical port • Approvals: CE

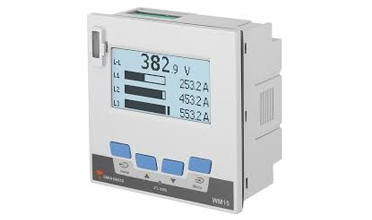

Power Analyzer WM15 • Panel mounting • 208 to 600 VLL AC, 5(6) A • Class 1 or Class 0.5S (kWh), 0.5% RDG (V, A) • Pulse/alarm output, optional Modbus RS485 or M-Bus port • Approvals: CE - MID - cULus - UKCA

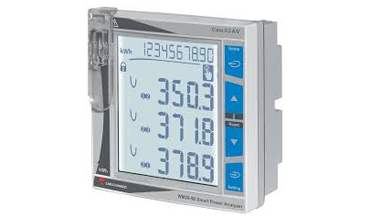

Modular Power Analyzer WM20 • Panel mounting • 230 or 690 VAC, 5 AAC • Class 0.5S (kWh), 0.2% RDG (V, A) • Up to 2 outputs, optical port, Modbus RS485 and Ethernet, BACnet MSTP and IP, Profibus • Approvals: CE - cULus - UKCA

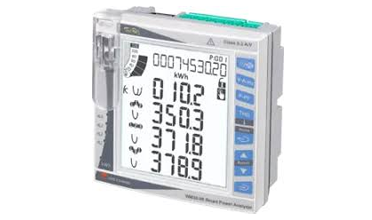

Modular Power Quality Analyzer WM30 • Panel mounting • 230 or 690 VAC, 5 AAC • Class 0.5S (kWh), 0.2% RDG (V, A) • Up to 4 outputs, optical port, Modbus RS485 and Ethernet, BACnet MSTP and IP, Profibus • Approvals: CE - cULus
Modular Power Auality Analyzer WM40 • Panel mounting • 230 or 690 VAC, 5 AAC • Class 0.5S (kWh), 0.2% RDG (V, A) • Up to 6 inputs, up to 8 outputs, optical port, Modbus RS485 and Ethernet, BACnet MSTP and IP, Profibus • Approvals: CE - cULus

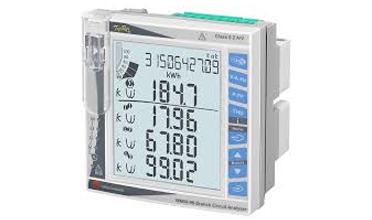

Modular Branch Circuit Analyzer WM50 • Panel mounting • 208 to 480 VAC, 5 AAC + TCD • Main unit: Class 0.5S (kWh), 0.2% RDG (V, A). TCD: 0.5% (V,A) • Up to 96 sub-metering 65 A ch. Up to 6 digital inputs, up to 6 outputs, optical port, Modbus RS485 and Ethernet • Approvals: CE - cULus

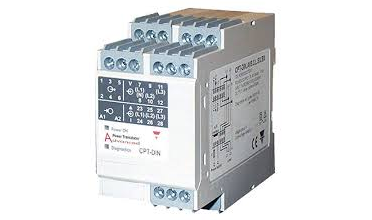

Power Transducer CPT • DIN-rail mounting • 208 or 600 VAC, 1 or 5 AAC • Class 1 (kWh), 0.5% F.S. (V, A) • RS485 port, relay, open collector, or analogue output or Dupline® bus • Approvals: CE - cURus - CSA

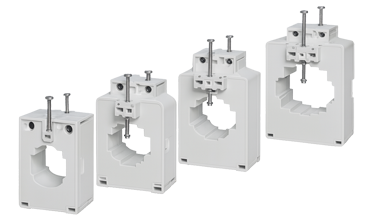

Current Transformer CTD X • DIN-rail, cable or bus-bar mounting • Solid core current transformers • Primary: from 40 to 1600 AAC • Secondary: 5 A or 1 A • Approvals: EN 61869-2 - cURus - CSA

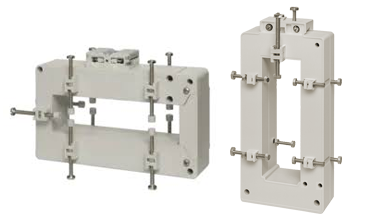

Current Transformer CTD V/H • Bus-bar mounting • Solid core current transformers • Primary: from 100 to 4000 AAC • Secondary: 5 A or 1 A • Approvals: EN 61869-2 - cURus - CS

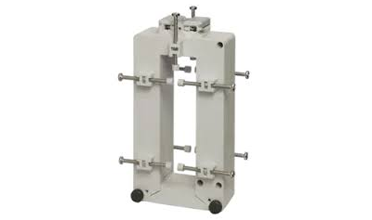

Current Transformer CTD S • Bus-bar mounting • Split core current transformers • Primary: from 100 to 3200 AAC • Secondary: 5 A or 1 A • Approvals: EN 61869-2 - cURus - CSA

Energy Meters and Analysers REQUEST A QUOTE
A comprehensive range of energy meters, analyzers and transducers (AC and DC) focused on submetering and cost allocation. Carlo Gavazzi provides a solution to industrial, commercial, residential, power generation and EV chargers applications where accuracy, standard compliance (including MID), electrical variable metering, analysis and communication are all important factors.

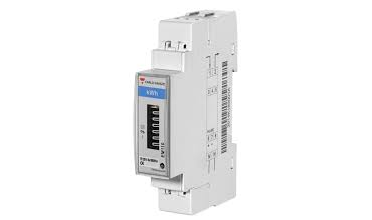

Energy Analyzer EM110 • DIN-rail mounting • 1-phase, 120 or 230 VAC, 32 A direct connection • Class 1 (kWh) • Pulse output • Approvals: CE - MID - cULus

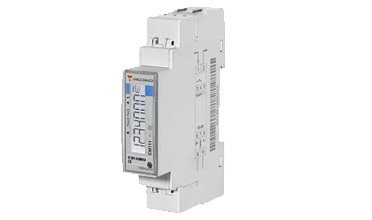

Energy Analyzer EM111 • DIN-rail mounting • 1-phase, 120 or 230 VAC, 32 A direct connection, 5 A or 333 mV CT input • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, M-Bus port, or pulse output • Approvals: CE - MID - cULus

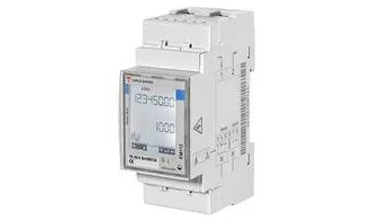

Energy Analyzer EM112 • DIN-rail mounting • 1-phase, 120 or 230 VAC, 100 A direct connection • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, M-Bus port, or pulse output • Approvals: CE - MID

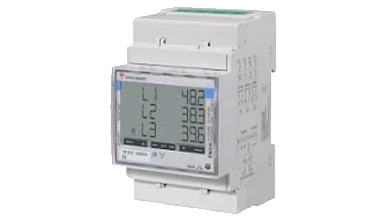

Energy Analyzer EM330 • DIN-rail mounting • 400 to 480 VLL AC, 5 A CT input • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, M-Bus port, or pulse utput • Approvals: CE - MID - UL

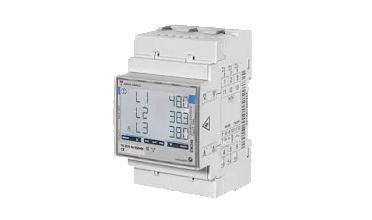

Energy Analyzer EM340 • DIN-rail mounting • 208 to 400 VLL AC, 65 A direct connection • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, M-Bus port, or pulse output • Approvals: CE - MID

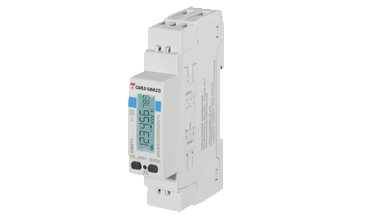

Energy Analyzer EM511 • DIN-rail mounting • 1-phase, 120 to 240 VAC, 45 A direct connection • Class 1 (kWh), 0.5% (V, A) • RS485 Modbus port, M-Bus port, or digital output (pulse or alarm) • Approvals: CE - cULus - UKCA - MID

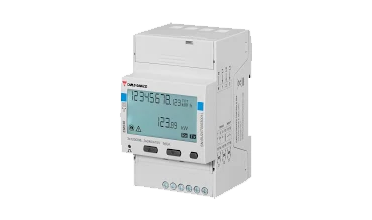

Energy Analyzer EM530 • DIN-rail mounting • 208 to 415 VLL AC, 5A CT input • Class 0.5S (kWh), 0.3% (A), 0.2% (V) RS485 Modbus port, M-Bus port, or digital output (pulse or alarm) • Approvals: CE - cULus - UKCA - MID
Energy Analyzer EM540 • DIN-rail mounting • 208 to 415 VLL AC, 65 A direct connection • Class 1 (kWh), 0.5% (V, A) • RS485 Modbus port, M-Bus port, or digital output (pulse or alarm) • Approvals: CE - cULus - MID

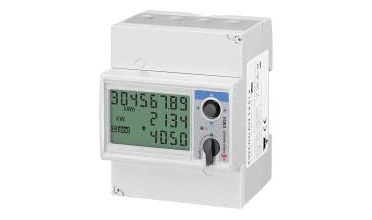

Energy Analyzer EM24 W1 I • DIN-rail mounting • 208 to 480 VLL AC, 5A CT or 65 A direct connection • Class 1 (kWh), 0.5% RDG (V, A) • M-Bus, RS485 Modbus, Modbus TCP Ethernet port or wireless M-Bus (internal or external antenna) • Approvals: CE - cULus - MID

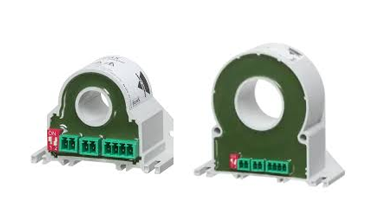

Power Transducer CPA • Contactless power analyzers • 1-phase AC (from 1 to 400 Hz) or DC systems • RS485 communication port (Modbus) • Current range: [CPA050] 50 AAC / 50 ADC [CPA300] 300 AAC / 400 ADC • Voltage range: 800 VAC / 1000 VDC • Approvals: CE - cURus

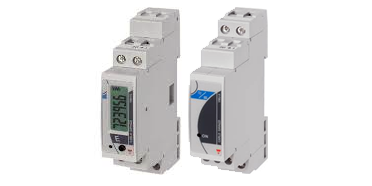

DC Energy Meter VMU E - VMU X • DIN-rail mounting • 400 VDC, 1000 A (20 A direct) • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port or static output • Approvals: CE

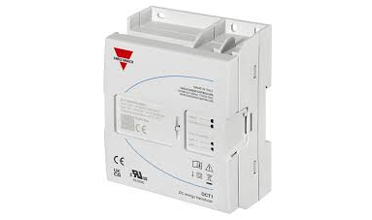

DC Energy Transducer DCT1 • DIN-rail mounting • 150 to 1000 VDC, 300 or 600 A max • Class 1 according to iEC 62053-41, class B according to VDE-AR-E 2418-3- 100 Annex A (kWh), 0.5% (V, A) • RS485 Modbus port (256-bit or 384-bit signature), SML port • Approvals: CE - cURus - UKCA

Energy Meters and Analysers REQUEST A QUOTE
Up-to-date designs, quality, attention to details, such as installation features and installation time, all mean that Carlo Gavazzi products are very competitive in the market. A full retrofit range of meters offering metering and monitoring solutions to meet every need can be found in our product portfolio.

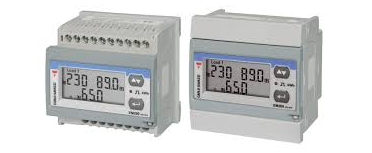

Retro-Fit Energy Analyzer EM210AV • DIN-rail and panel mounting • 230 or 415 VAC, 5 A CT input • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, static output • Approvals: CE - cULus
Retro-Fit Energy Analyzer EM210MV • DIN-rail and panel mounting • 230 or 415 VAC, or 60 to 800 AAC measured by CTV or ROG current sensors • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, static output • Approvals: CE - cULus - UKCA

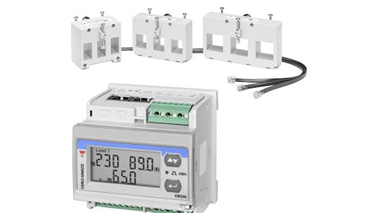

Quick-Fit Energy Meter EM270 and TCD X • DIN-rail and panel mounting • 230 or 415 VAC, 160 to 630 AAC measured by up to 2 TCD X triple current transformers • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, static output • Approvals: CE - cULus - UKCA

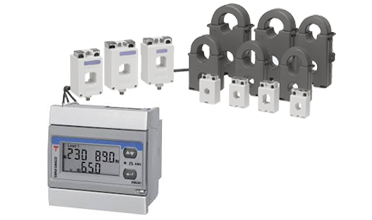

Quick-Fit Energy Meter EM271 and TCD M • DIN-rail and panel mounting • 230 or 415 VAC, 60 to 400 AAC measured by up to 2 TCD M split-core triple current sensors • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, static output • Approvals: CE - cULus - UKCA

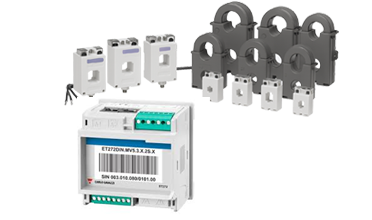

Quick-Fit Energy Transducer ET272 and TCD M • DIN-rail mounting • 277 to 415 VAC, 60 to 400 AAC measured by up to 2 TCD M split-core triple current sensors • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port with self- addressing capability • Approvals: CE - cULus

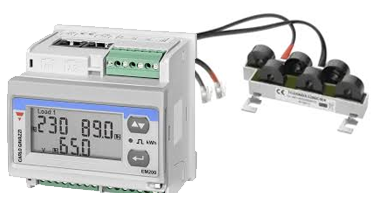

Quick-Fit Energy Neter EM280 and TCD06BX • DIN-rail and panel mounting • 230 or 415 VAC, 32 AAC measured by 6-channel TCD06B current transformer block (solid core) • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, static output • Approvals: CE - cULus

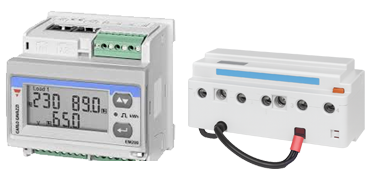

Quick-Fit Energy Meter EM280 and TCD06BS • DIN-rail and panel mounting • 230 or 415 VAC, 32 AAC measured by 6-channel TCD06B current transformer block (split core) • Class 1 (kWh), 0.5% RDG (V, A) • RS485 Modbus port, static output • Approvals: CE - cULus

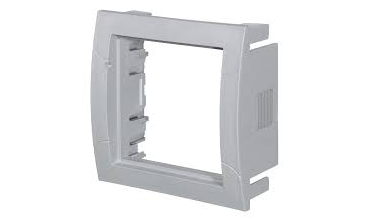

EM200-96 Adapter • 96x96 panel mounting adapter for EM210, EM270, EM271 and EM280

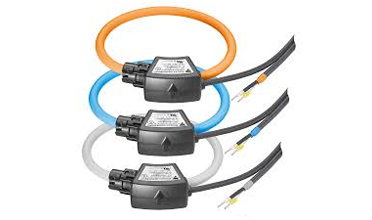

Rogowski Current Sensors ROG4X • Cable mounting • Rogowski split core current sensors for EM210 MV • Primary: up to 4000 AAC • Secondary: direct connection to EM210 MV without any external converter • Approvals: CE - cURus

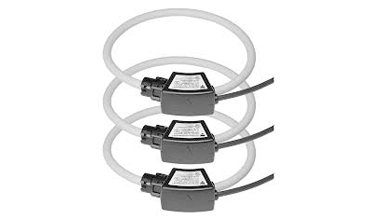

Rogowski Current Sensors ROG4U • Cable mounting • Rogowski split core current sensors for EM210 MV and EM50 RG5 • Primary: up to 2000 AAC • Secondary: direct connection to EM210 MV or EM50 RG5 without any external converter • Approvals: CE - cULus (UL2808)

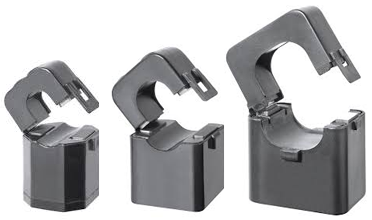

Current Sensor CTV • Cable mounting • Miniature split core current sensors • Primary: from 60 to 800 AAC • Secondary: 333 mV • Approvals: CE - cURus

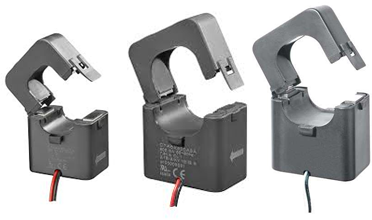

Split-Core Current Transformers CTA • Cable mounting split-core current transformers • Primary: from 100 to 600 AAC • Secondary: 5 A • Approvals: CE - cURus
