The Dupline® bus provides several advantages to building automation systems. The simplified wiring and high flexibility of the bus-powered sensors and decentralized I/O modules can provide considerable installation cost reductions. Due to the cost- effective design of the smart-house modules, this can be achieved by using materials with a cost comparable to the traditional hardwired solutions. The issue is to interface Dupline® and Energy Meters to the building automation controllers and building management systems and with the UWP 3.0 BACnet controller, all data points from Dupline® and Energy Meters are now automatically made available as BACnet objects, ready to be used by any building automation controller or BMS from the major suppliers.

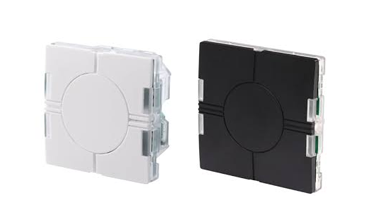

Wired / Wireless Light Switches SH Series • 4 individually programmable push buttons • Blue and red LEDs for wireless field power and battery level • Battery supplied /bus supplied • SHA4xxx: developed to fit into wall sockets & frames from Fuga, NIKO & Bticino • SHE5xxx: developed to fit into wall sockets & frames from Elko, Gira and Jung

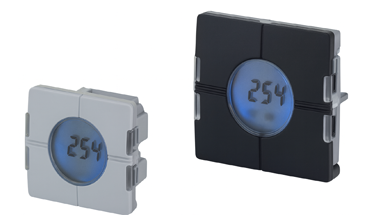

Temperature Displays SH Series • Temperature controller with display • Shows current room, outdoor and auxiliary temperature • Bus powered, no external supply required • SHA: Developed to fit into wall sockets from Fuga, NICO and Bticino • SHE: Developed to fit into wall sockets from Elko, Gira and Jung

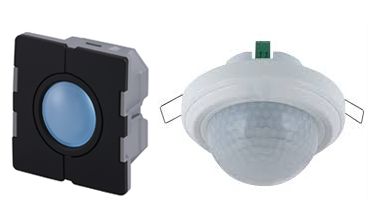

PIR detectors + Luxmeter SH/SHO Series • Passive infrared detector (PIR) • Detects movement end presence • Bus powered, no external supply required • Walk test: LED indication • Programmable sensitivity

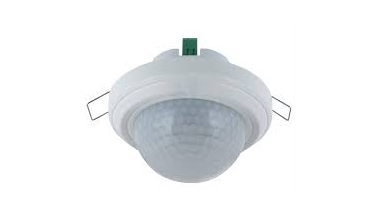

DALI- 2 PIR detectors DLI-P360 • Passive infrared detector (PIR) with built-in luxmeter, and temperature sensor • Programmable and operated by UWP • 4.0 or any DALI-2 controller • Detection range up to 24 square meters • Walk test: LED indication • Programmable sensitivity

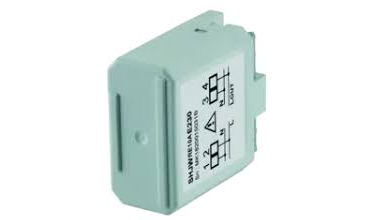

Wireless Relay SHJWRE10A • Small sized single relay output for eurobox mounting • Energy reading • Range up to 700 m in open air • Load: 10 A/250 VAC • Capacitive touch buttons for a plug&play replacement of standard switches (Bticino only)
Wireless energy meter SHJWEM16A • Small sized for eurobox mounting • Values readout: A, V, W, Wdmd, VA, var, PF, kWh • Range up to 700 m in open air • Direct connection up to 16 A
Wireless Dimmer SHJWD200WE • Universal dimmer switch for R, L, C up to 200 W and LED loads • Automatic load detection for L, R, C loads • Range up to 700 m in open air • Capacitive touch buttons for a plug&play replacement of standard switches (Bticino only) • Input module with 4 configurable inputs: S0 class B pulse counter or voltage free input • Count values are stored in non-volatile memory • Counts up to 99999999 with rollover • Range up to 700 m in open air

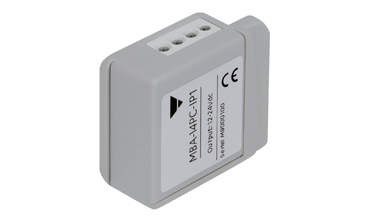

Wireless Input and Pulse Counter Module SHJWINS0 • Input module with 4 configurable inputs: S0 class B pulse counter or voltage free input • Count values are stored in non-volatile memory • Counts up to 99999999 with rollover • Range up to 700 m in open air

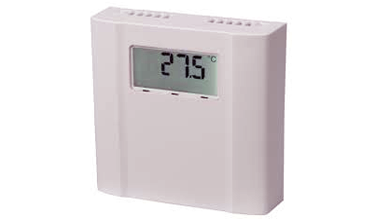

Environmental Sensors SHS Series • CO2, temperature and humidity sensors • CO2 measuring range: 0 to 2000 ppm • Temperature measuring range: -20°C to 50 °C • Humidity measuring range: 0 to 100 %R • LCD Display and touch function to activate backlight and change signal type

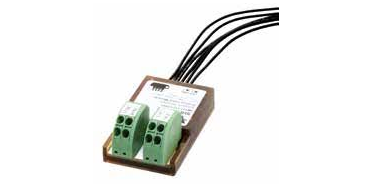

Decentralised Analogue Input / Output Modules SHPIN/SHPOUT • Output modules with two 0-10 V outputs • Input modules for thermistor, resistor and voltage measuring: pt1000, ni1000, 10K3 thermistor input, 1-11K resistor input, 0-10 V input, 4-20 mA • Small dimensions for decentralized installations • 24 VDC power supply

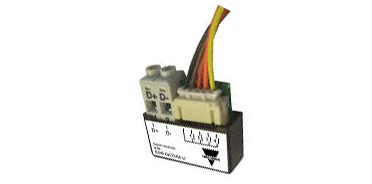

Decentralised Input Module / Pulse Counters BDB/SHPINCT • Input module with 4 configurable inputs: S0 class B pulse counter or voltage free input • Count values are stored in non-volatile memory • Counts up to 99999999 with rollover • 24 VDC power supply

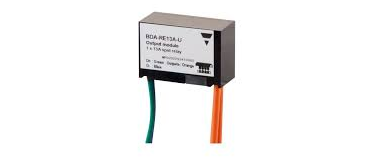

Decentralised Relay Nodules BDA-RE13A-U • Small sized single relay output • Load: 13 A / 250 VAC • Withstands 130 A inrush current • Supplied by Dupline® bus
